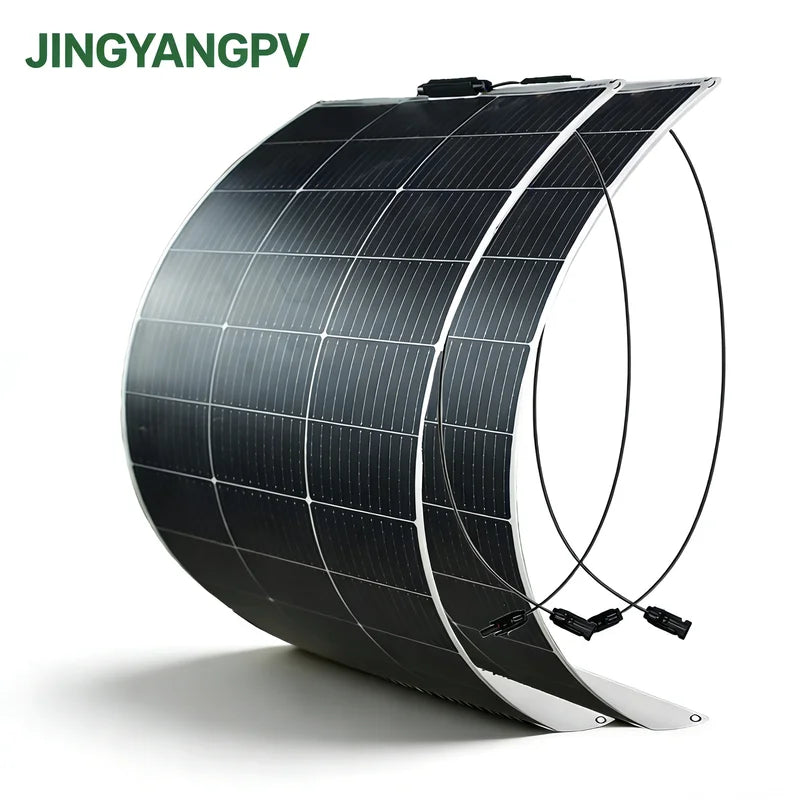

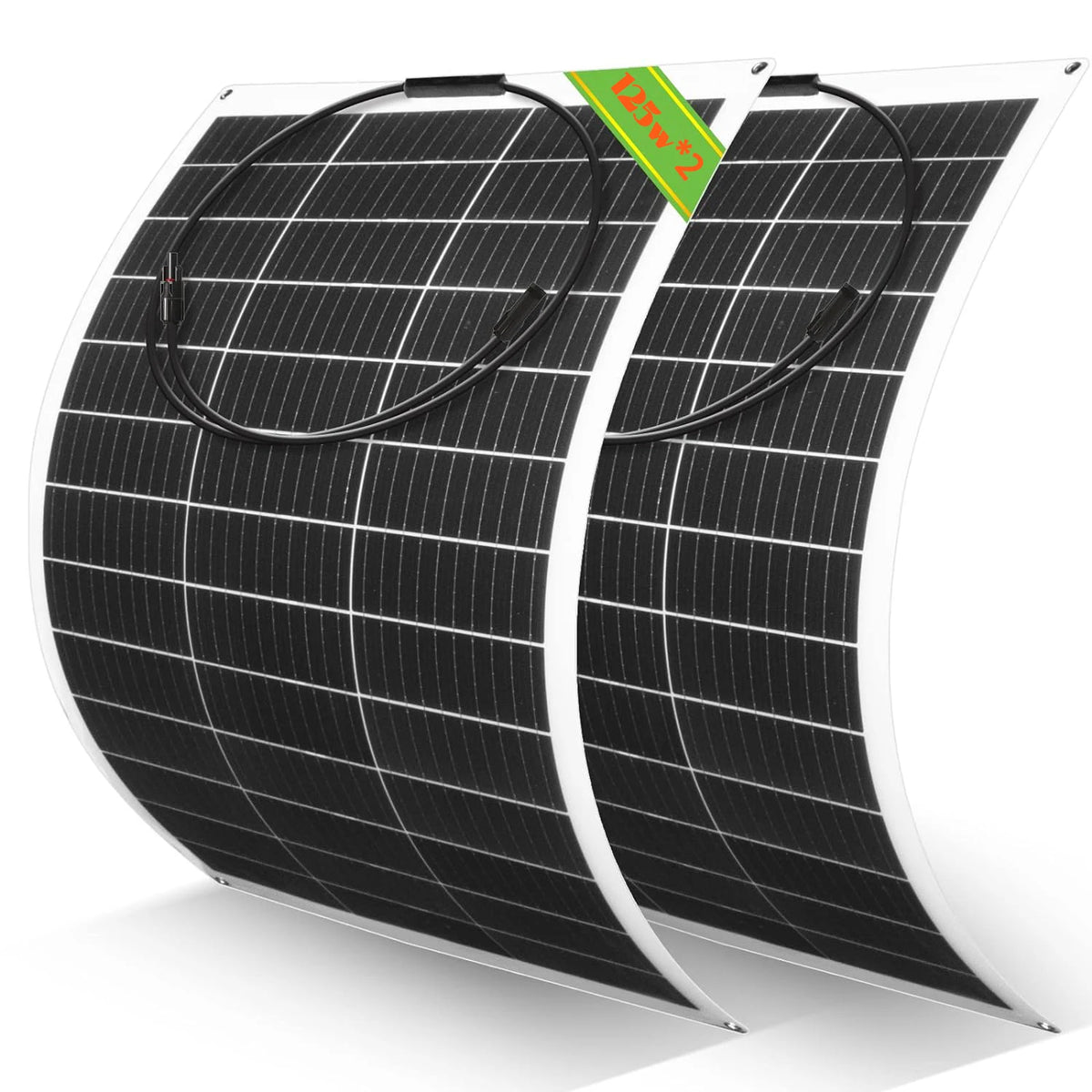

125W Flexible Monocrystalline Solar Panel for Off-Grid Systems 12V/24V
125W Flexible Monocrystalline Solar Panel for Off-Grid Systems 12V/24V
JINGYANG PET Solar Panels:
Stronger Box Package, sturdy and durable, good heat dissipation. No hot spots will appear.

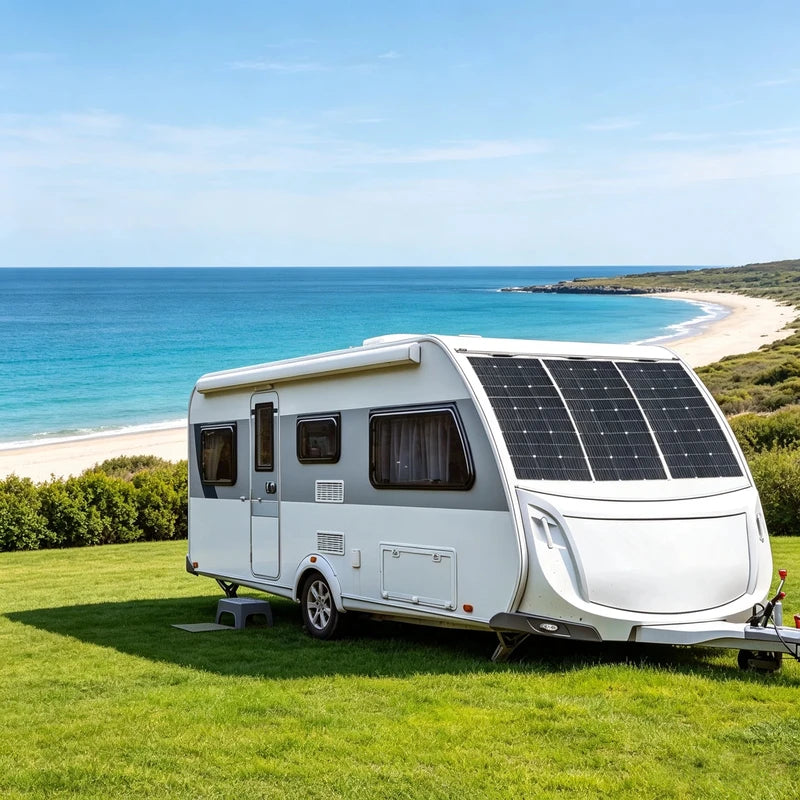

With a service life of more than 8-10 years, it is Very Thin And Durablle With Less Weight. It is the best choice for motorhomes and Camping, Boat, Marine, RV, Bus Car Roof. It has a very high cost performance and is the best choice for home energy investment Or Outdoor Usage.
Product description:

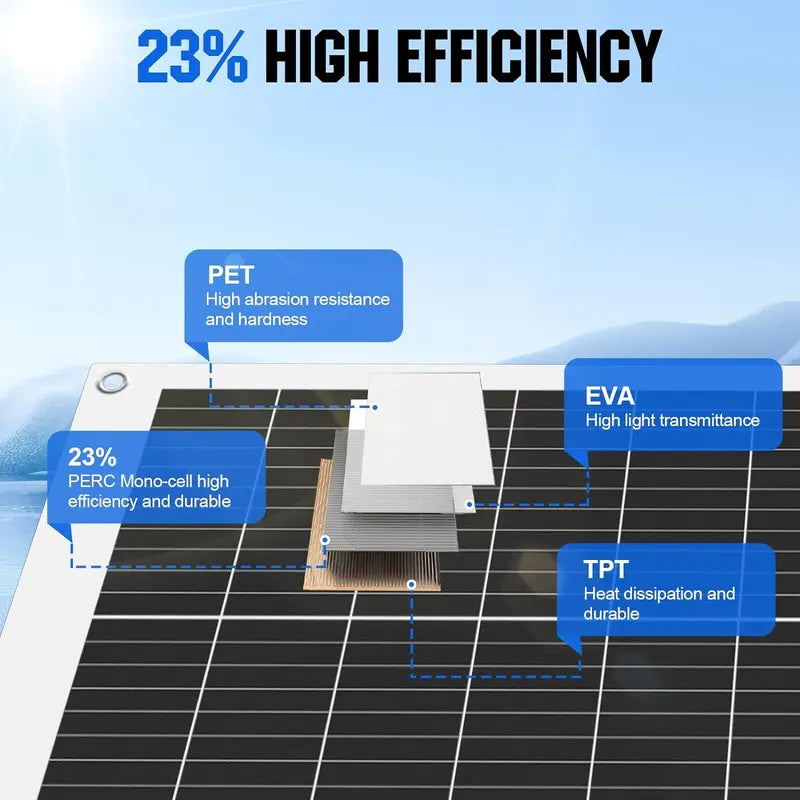

The surface is Plstic Cover Film Coating And Four EVA Layers, waterproof, snowproof, resistant to small hail.

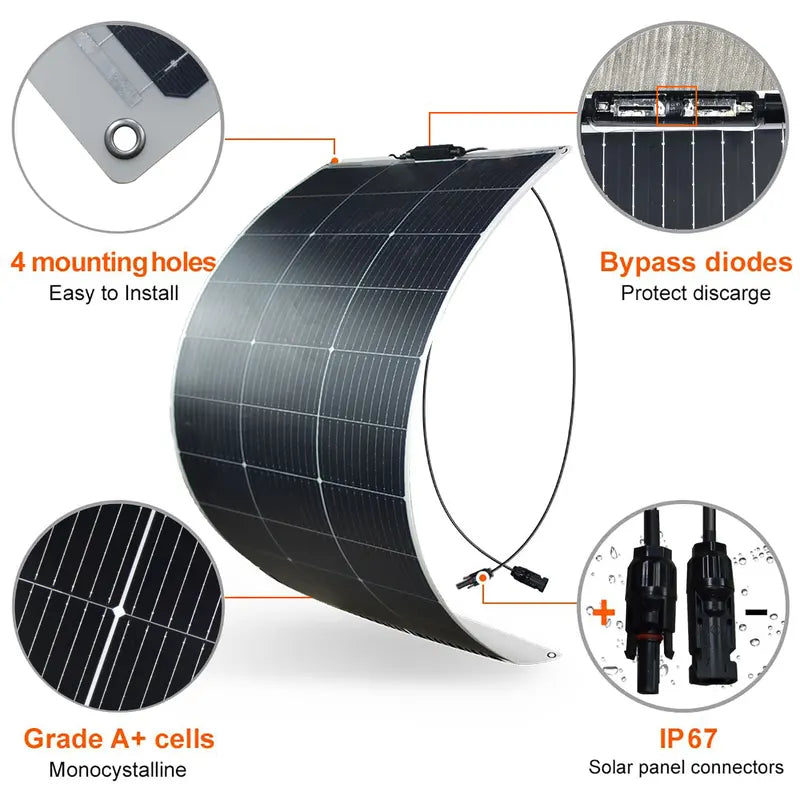

By-pass Diodes are pre-installed in junction box and a pair of 2.5MM2 cables with MC4 connectors comes with the panel automatically, Cable Length with About 900MM

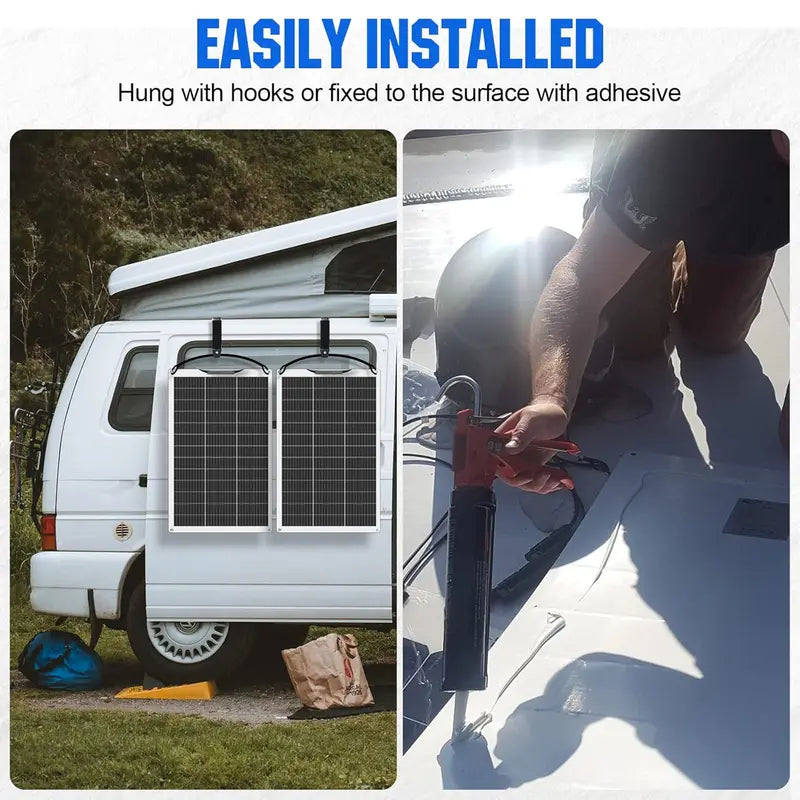

The back Sidehas 4 drill holes that can be quickly installed.
Material: Monocrystalline silicon

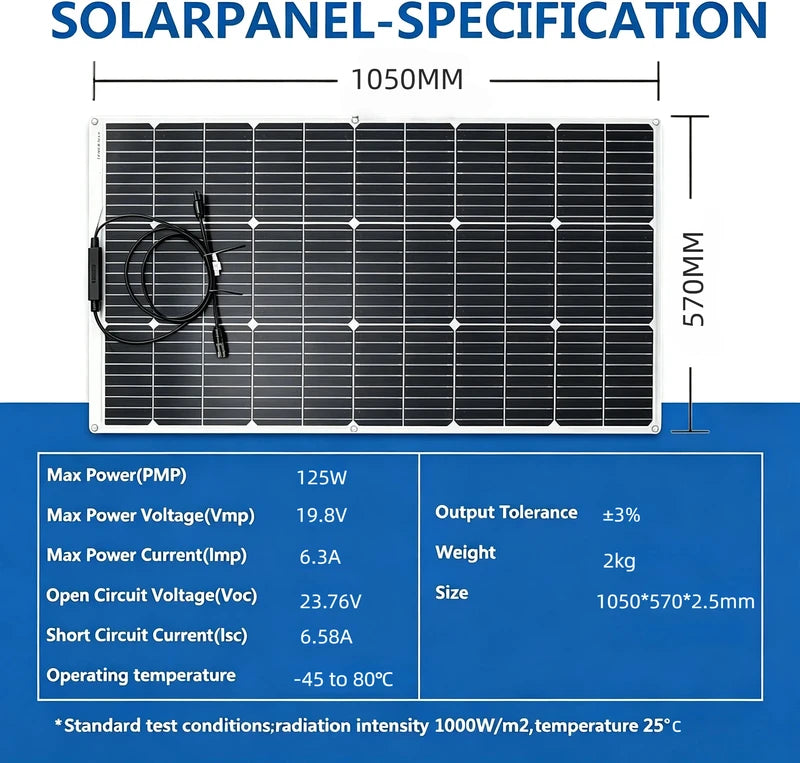

Maximum Power(Pmax):125W±3%
Maximum Power Voltage(Vmp):19.8V
Maximum Power Current (Imp):6.3A
Open-Circuit Voltage (Voc): 23.76V
Short-Circuit Current (Isc):6.85A
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Maximum System Voltage:DC1000V
Maximum Series Fuse:15A

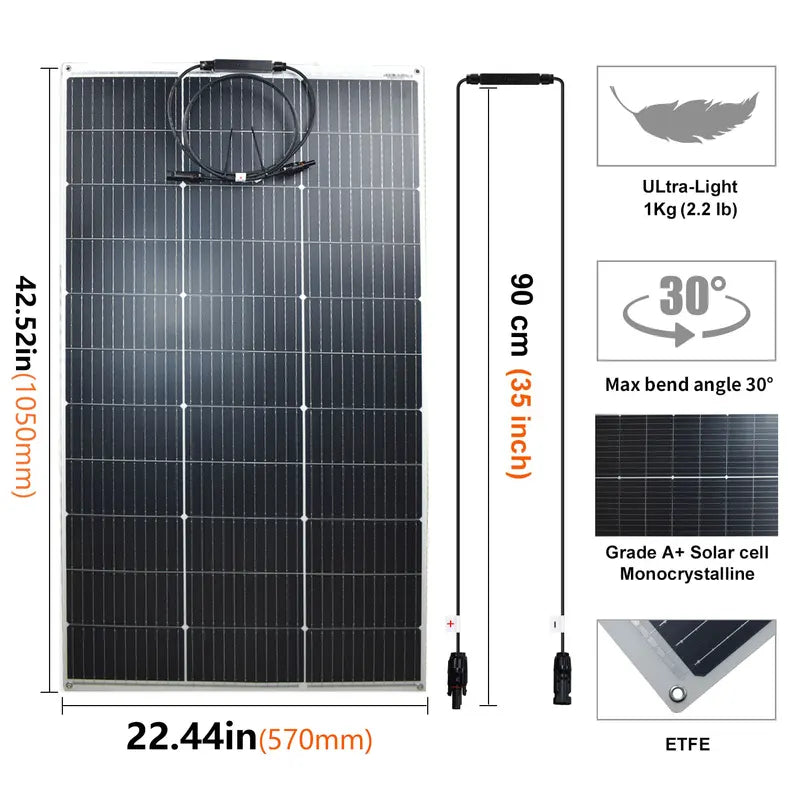

Dimension:1055MM(L)*569MM(W)*2.5mm(H)
