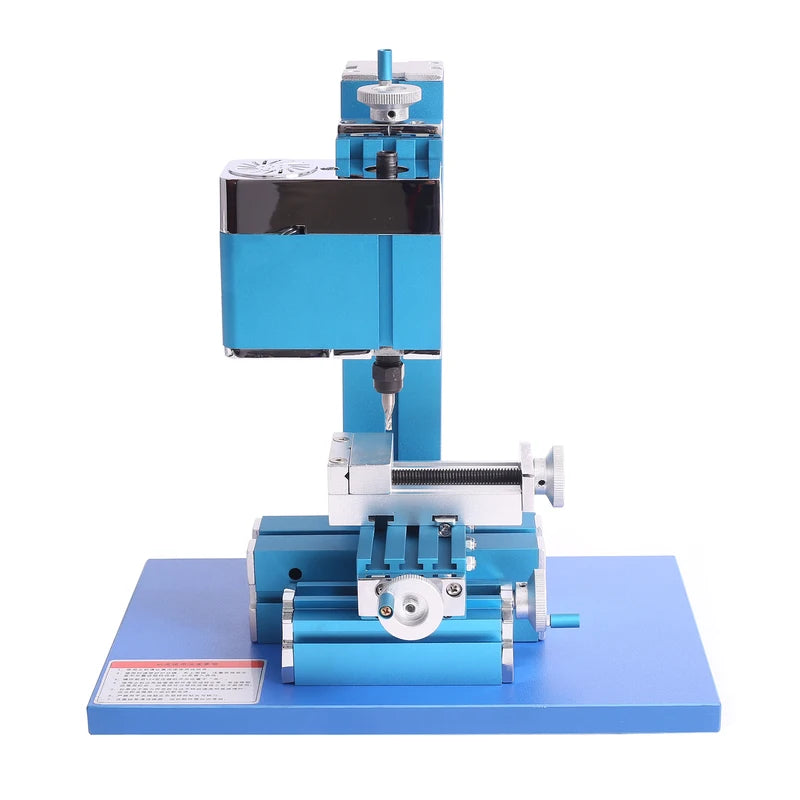

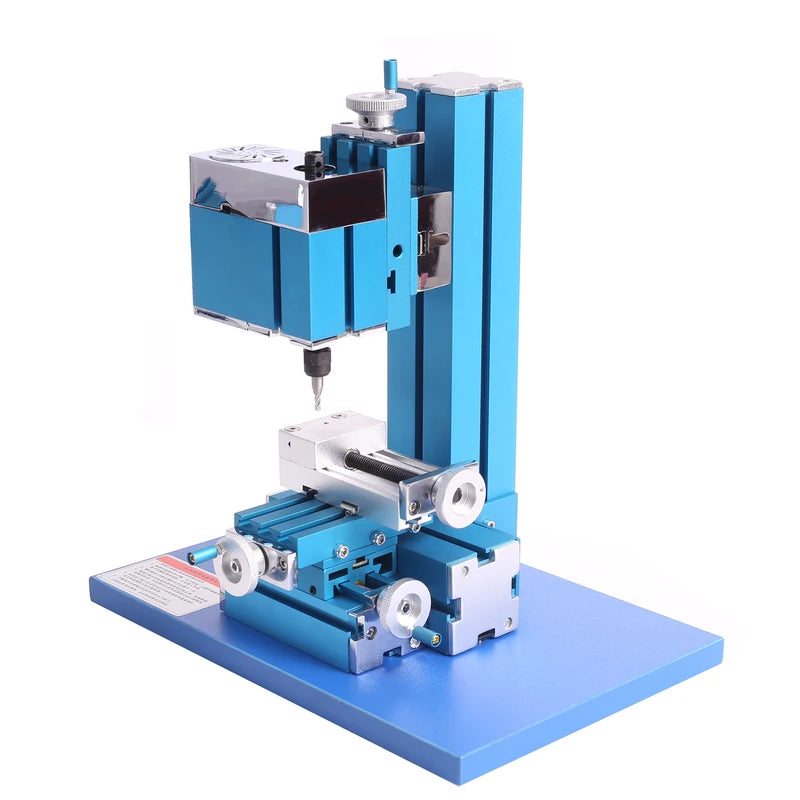

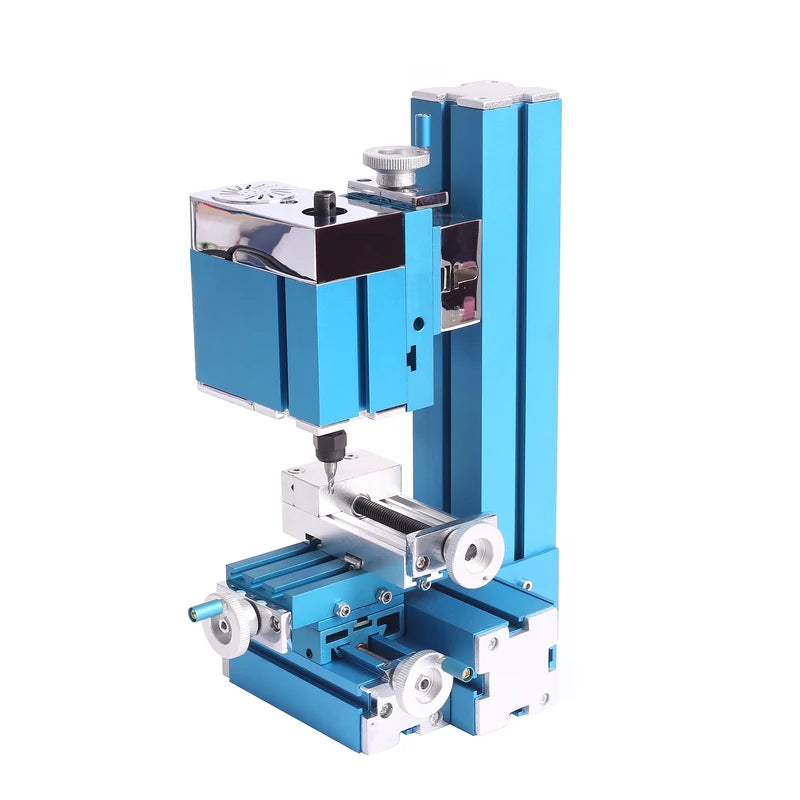

36W Mini Metal Milling Machine with Variable Speed DIY Tool for Wood & Metalworking

Juvenile Activity Center, School General Technical Room, Science and Technology Activity Room Equipment, Science and Technology Museum Student Science and Technology Creation, DIY hobbyist.

The main components of the headstock, intermediate block, connecting block, vice, large slider, small slider, hand wheel, base and so on are made of metal. The quality of the product is improved, more durable and more precise.

Input voltage: AC100V~240V / 50/60HZ

Output voltage: DC12V 2A

Motor rated power: 36W

Motor speed: 20000r/min±15%

Spindle speed: 3000r/min±15%

Spindle jump: <0.1mm

Large slider stroke（X axis）: 45mm

Small slider stroke（Y, Z axis）: 35mm

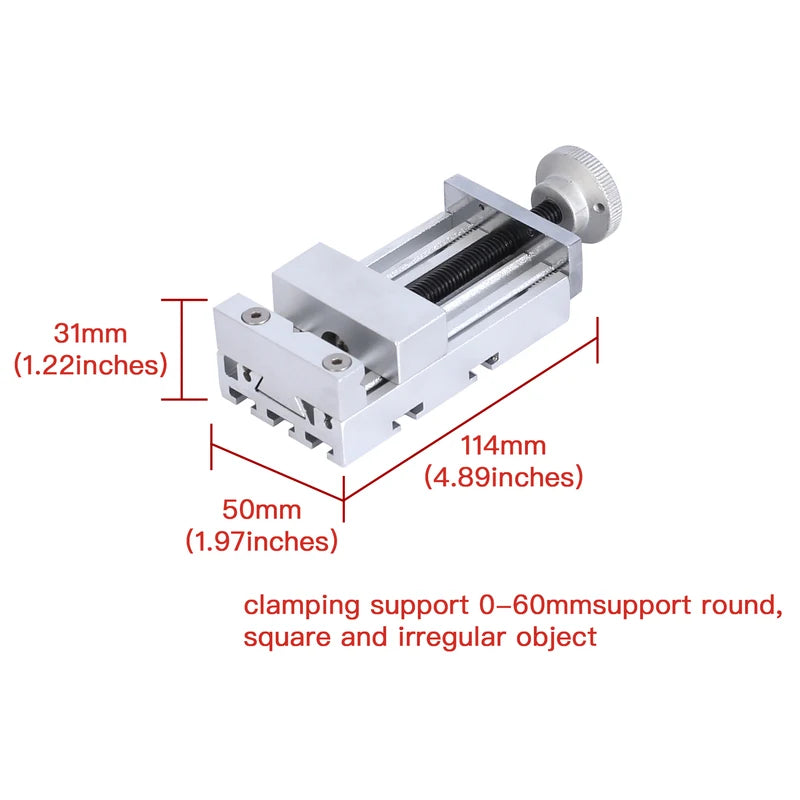

Visesize: 114*50*31mm

Vise clamp size: 0-60mm support round, square and irregular object

Chuck specifications: ф1, ф2, ф2.5, ф3, ф3.5, ф4, ф5, ф6

Milling cutter size: φ3, φ4, φ5, φ6

Handle scale: 0.1mm/division

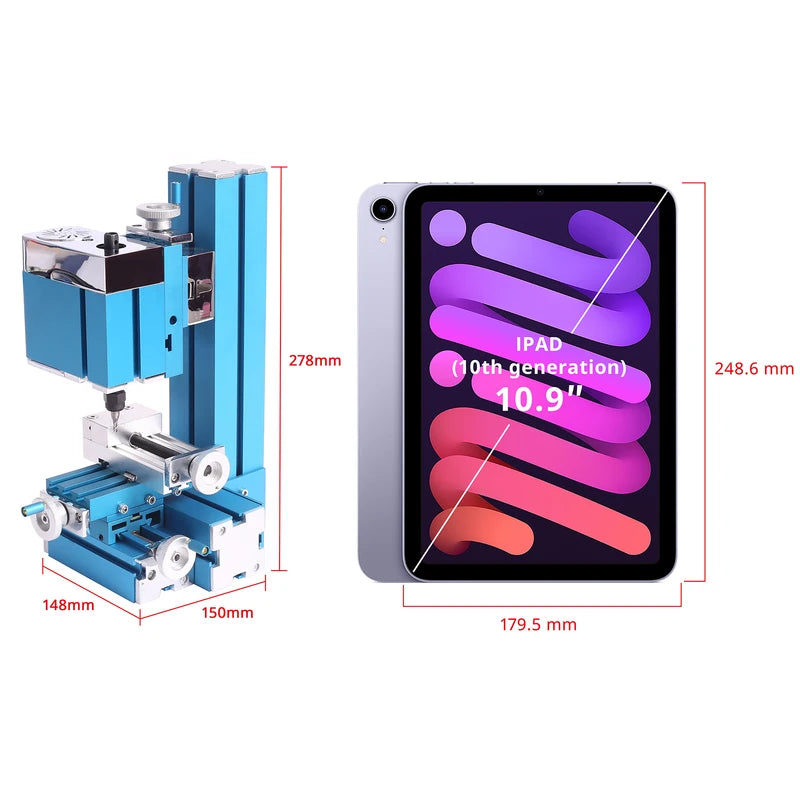

Product size: 148*150*278mm

Packing size: 325mm*200mm*240mm

Weight: 3KG

Processing ability: It can process wood, plastic and soft metals (pure copper and pure aluminum).

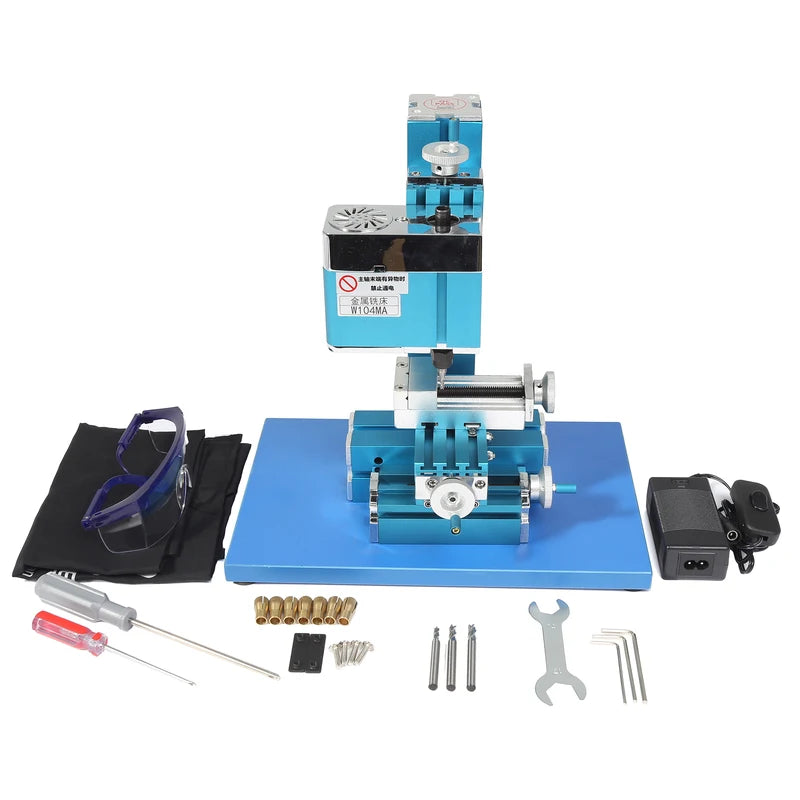

1 set of Milling Machine

1 set of Accessories:

inner hexagon spanner   3pcs(S=2\2.5\3)

double-headed wrench   1pcs(S=14\17)

cross screwdriver        1pcs

milling cutter           4pcs(φ3, φ4, φ5, φ6),

the φ3 one is on machine

chuck                 8pcs(ф1, ф2, ф2.5, ф3, ф3.5, ф4, ф5, ф6)

the ф6one is on machine

two hole clamping plate   2pcs

screw                  2pcs(M4*16)

1 set of apron

1 set of goggles
