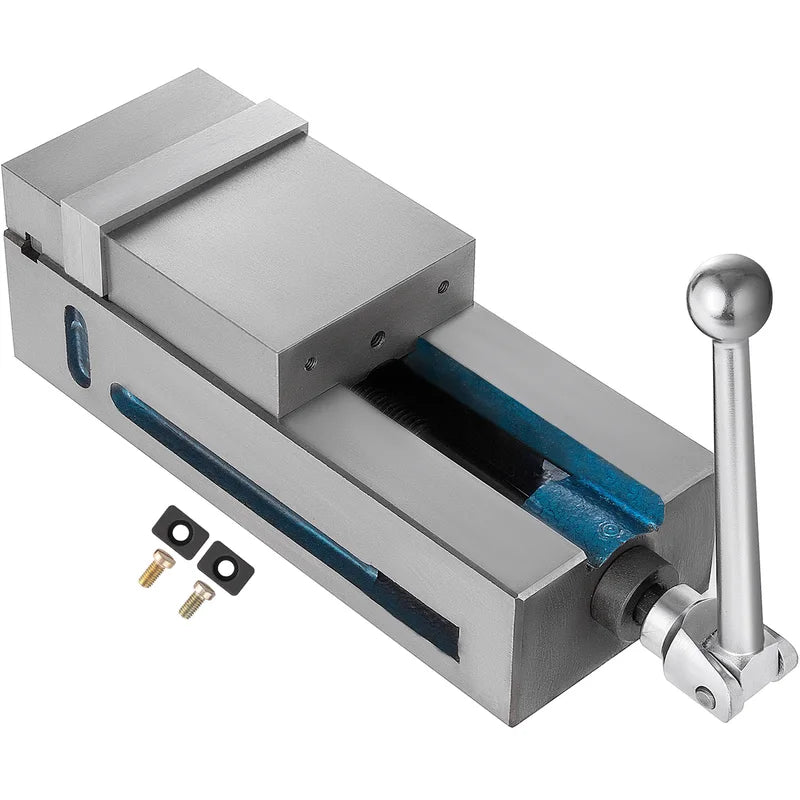

4-Inch Milling Vise Clamp 100mm Cast Iron Bench Vise 19KN Clamping Force

4-Inch Milling Vise Clamp 100mm Cast Iron Bench Vise 19KN Clamping Force

$124.99 $234.99
Skip to product information
4-Inch Milling Vise Clamp 100mm Cast Iron Bench Vise 19KN Clamping Force
  • 4-Inch Milling Vise Clamp 100mm Cast Iron Bench Vise 19KN Clamping Force
  • 4-Inch Milling Vise Clamp 100mm Cast Iron Bench Vise 19KN Clamping Force
  • 4-Inch Milling Vise Clamp 100mm Cast Iron Bench Vise 19KN Clamping Force
  • 4-Inch Milling Vise Clamp 100mm Cast Iron Bench Vise 19KN Clamping Force
  • 4-Inch Milling Vise Clamp 100mm Cast Iron Bench Vise 19KN Clamping Force
  • 4-Inch Milling Vise Clamp 100mm Cast Iron Bench Vise 19KN Clamping Force
  • 4-Inch Milling Vise Clamp 100mm Cast Iron Bench Vise 19KN Clamping Force
  • 4-Inch Milling Vise Clamp 100mm Cast Iron Bench Vise 19KN Clamping Force
  • 4-Inch Milling Vise Clamp 100mm Cast Iron Bench Vise 19KN Clamping Force
  • 4-Inch Milling Vise Clamp 100mm Cast Iron Bench Vise 19KN Clamping Force
  • 4-Inch Milling Vise Clamp 100mm Cast Iron Bench Vise 19KN Clamping Force
  • 4-Inch Milling Vise Clamp 100mm Cast Iron Bench Vise 19KN Clamping Force
4-Inch Milling Vise Clamp 100mm Cast Iron Bench Vise 19KN Clamping Force

4-Inch Milling Vise Clamp 100mm Cast Iron Bench Vise 19KN Clamping Force

$124.99 $234.99

Product Description
4" Multifunction Precision Lockdown Vise
During workshop operation, many workpieces minor damage due to their materials or excessive force, which caused work delays or economic losses. Therefore, to avoid damage to your workpiece, we recommend that you use the vise to clamp the workpiece. Our vise has a strong clamping force and can hold the workpiece very firmly. It can ensure the stability of the workpiece and avoid damage.

  • Premium Quality StructureConstruction

  • Powerful Clamping Force

  • High Accuracy Screw

  • Humanized Design

  • Multifunctional Tool

Tough Equipment & Tools, Pay Less
SucceBuy is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, SucceBuy is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, SucceBuy's products are sold in more than 200 countries and regions with 10 million plus members worldwide.
Why Choose SucceBuy?

  • Premium Tough Quality

  • Incredibly Low Prices

  • Fast & Secure Delivery

  • 30-Day Free Returns

  • 24/7 Attentive Service

Key Features
Durable Material

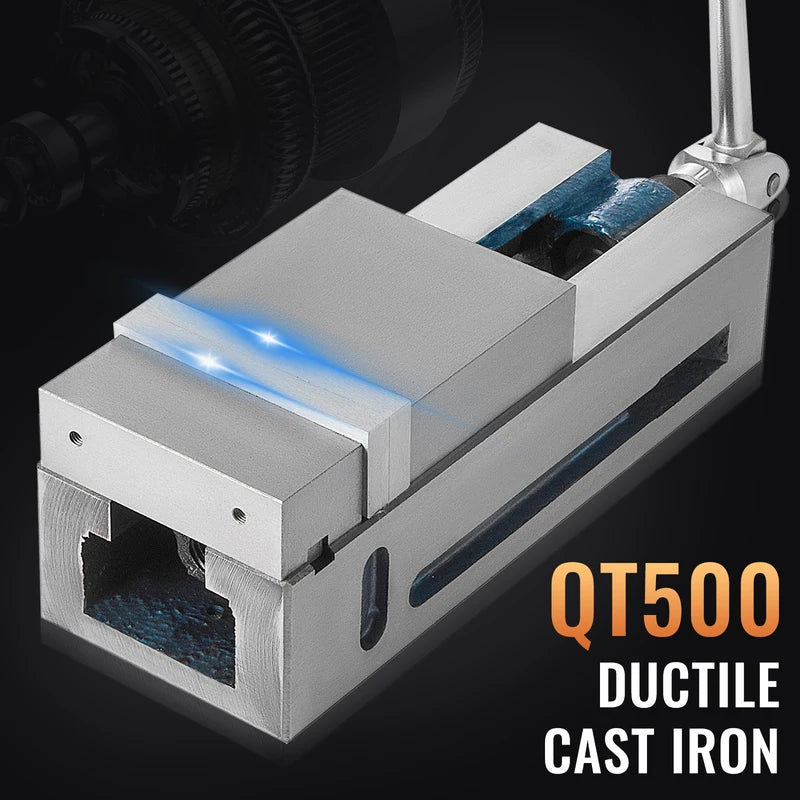

The vise is made of QT500 ductile cast iron, with strong toughness, high tensile strength, and wear resistance. Internal refine grinding treatment, smooth use, no jamming, rust, and corrosion resistance.
Hardened Clamping Jaw
The jaws are thickened and finely ground, and the maximum clamping force can reach 19 KN. The lockdown vise machine adopts a fully enclosed design, and iron filings are not easy to enter, which improves the service life of the vise.

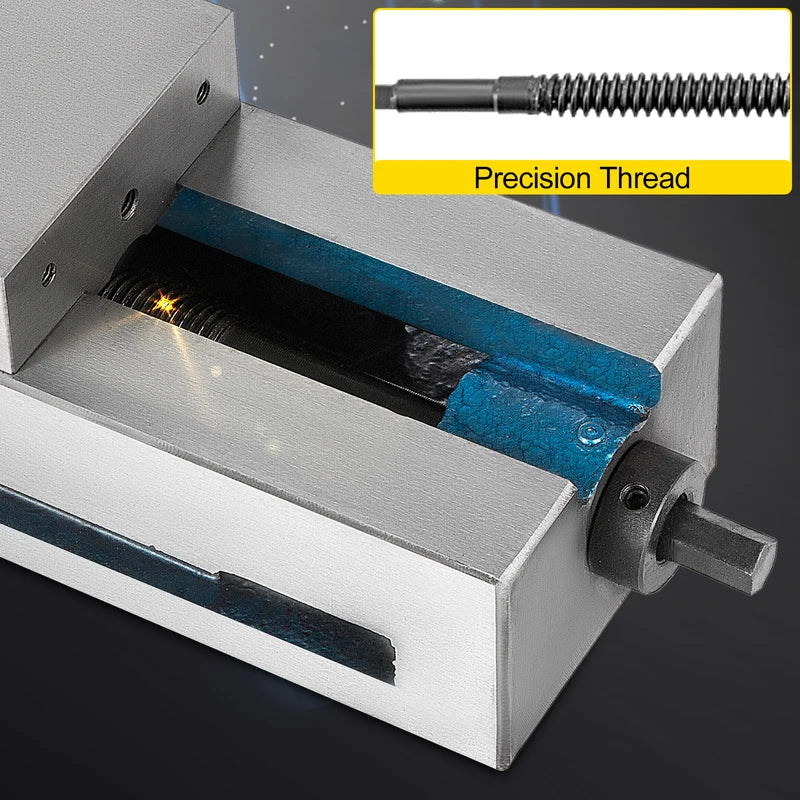

Quality Lead Screw
The thread pitch of the ladder screw is larger than the standard screw. The surface is quenched, turned, and ground. It is more wear-resistant, durable, and corrosion-resistant than the ordinary screw, and has higher accuracy.

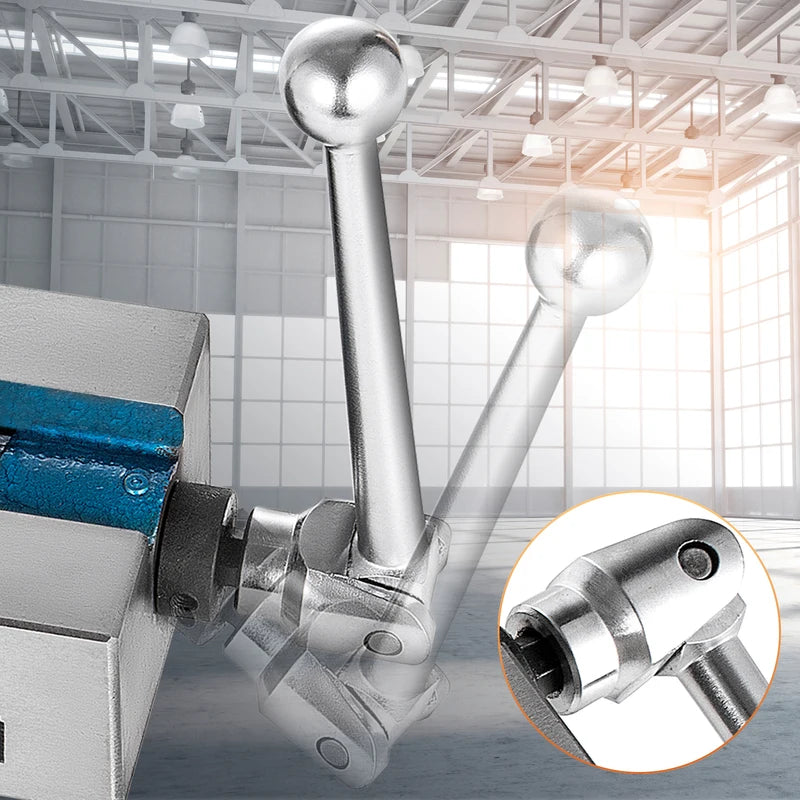

Adjustable Handle
The universal joint handle is ductile iron material, which is not easy to rust and is flexible and durable. You can precisely adjust the gripping force of the jaws through the handle, and complete the workpiece clamping work excellently.
Precision Design
The guide rail surface is refined ground, seamless contact surface, and the positioning is more accurate. Compared with a standard vise, it can be used upright without affecting the accuracy of clamping the workpiece.
Wide Application
Precision milling vise is the main accessory of precision milling machine and NC/CNC machine tool. Suitable for finishing milling machines, drilling machines, and precision parts.
Specifications

  • Type: Bench Vise

  • Jaw height: 1.2" (30 mm)

  • Jaw width: 4" (100 mm)

  • Jaw opening: 4.7" (120 mm)

  • Jaw material: 45# steel

  • Body material: QT500 ductile cast iron

  • Wrench material: QT500 ductile iron

  • Vise Height: 3.7" (95 mm)

  • Max Clamping force: 19 KN

  • Gross weight: 22.8 lbs (10.4 kg)

  • Package dimensions (L x W x H): 14.2" x 6.3" x 6.7" (36 x 16 x 17 cm)

Package Content

  • 1 x 4" Bench Clamp Vise Fixed Jaw

  • 1 x Handle

  • 1 x Manual




Features & Details

  • Premium Quality Structure: 45# steel jaws, after high-frequency quenching, undergo improving the wear resistance and service life of the jaws. Vise body for the QT500 ductile cast iron forging, which has good toughness, high strength, and durability.

  • Powerful Clamping Force: Vise guide surfaces are finely polished, smooth surface. When clamping the workpiece, the movement is stable, the positioning is accurate, and the clamping force can reach up to 19 KN, which is suitable for workpieces of different sizes.

  • High Accuracy Screw: The closed design protects the screw rod and prevents the entry of iron pins and other debris, which is convenient for maintenance and cleaning. The vise can be used not only horizontally, sideways, but also vertically, without affecting its precision.

  • Humanized Design: Our vises are detachable and can be quickly changed. The unique downward pressure design prevents the workpiece from floating when clamped. The hardened swivel handle is a universal joint structure, easy operation, flexible, and convenient to use.

  • Multifunctional Tool: Jaw Width: 4" (100 mm), Jaw Opening: 4.7" (120 mm). Milling Vise is an essential tool for fitters. Most work of the fitters is running by using the clamping vise such as sawing, filing, chiseling, and some assembly and removal jobs.
