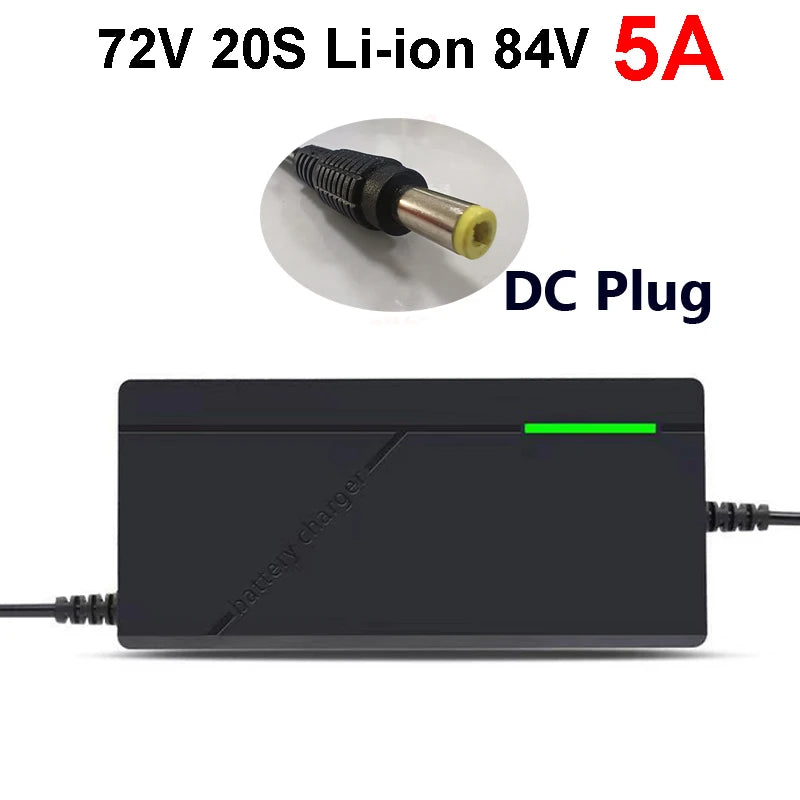

Smart Lithium Battery Charger 72V 5A 20S 84V

Specifications:

Model: 84V-5A

Input: 100~240V AC, 50/60Hz

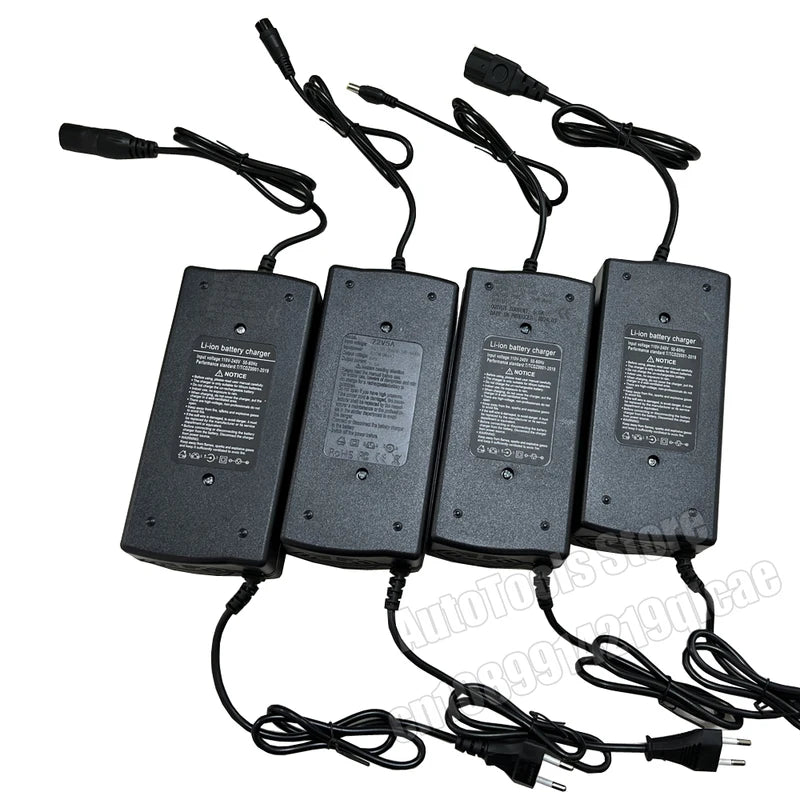

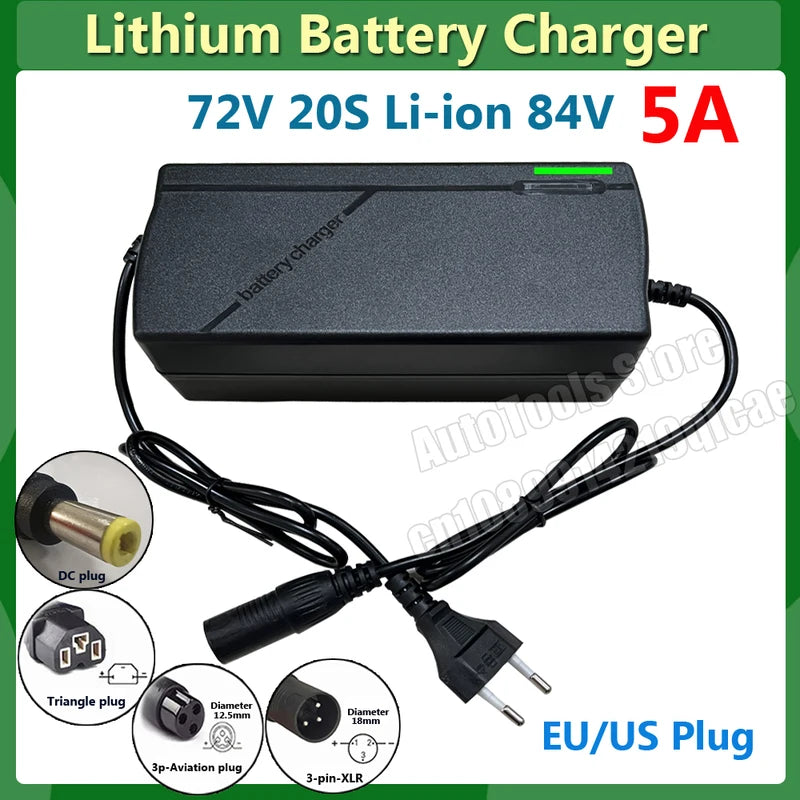

Output: DC/Triangle/Aviation/3pin XLR

Charging current: 5.0A ± 0.3A

Repair current: 600mA-800mA

Trickle charging: 170mA 30mA

Shell: plastic

Color: black

Plug:EU Plug/US Plug (Optional)

Output power: 600W MAX

Recommended capacity: 15AH~60AH

Charging indicator: Instructions: charging-light red; Filled-light green; Failure, the lights flashing.

Safety protection: OVP/OCP/overload protection/short-circuit protection

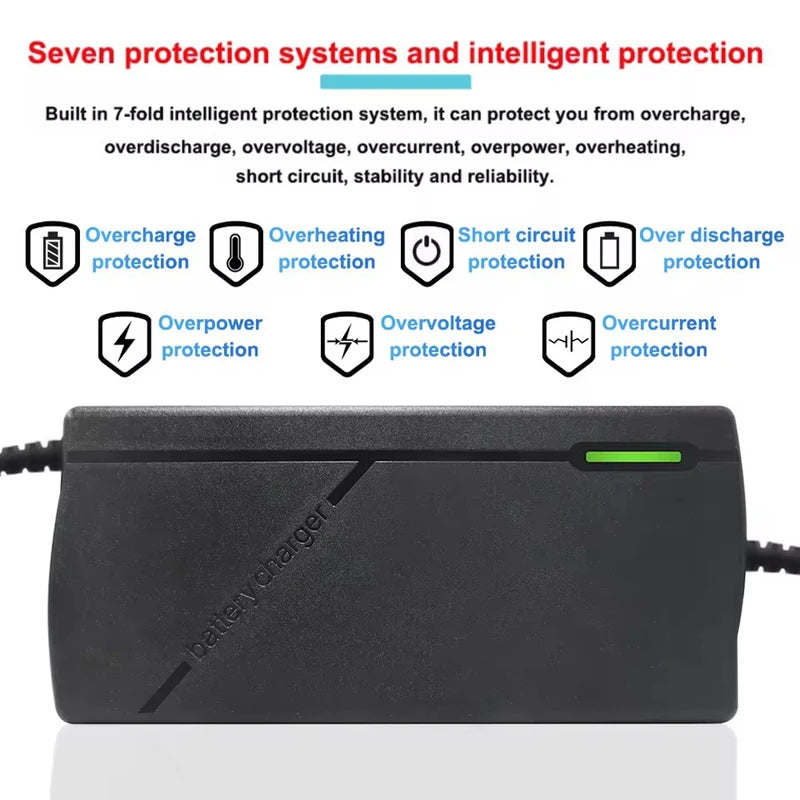

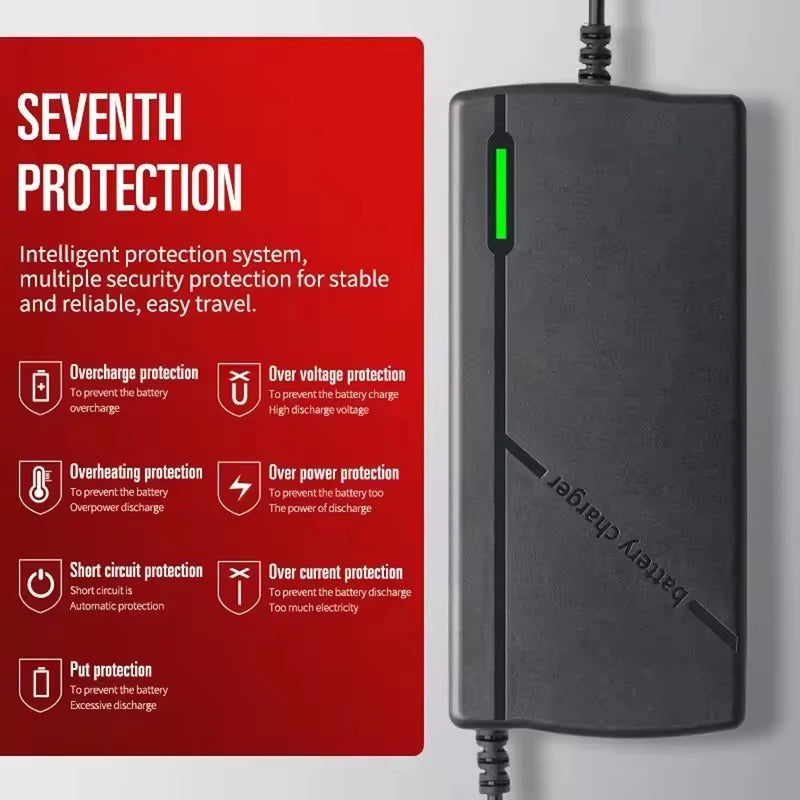

Protection characteristics:

1. Short circuit protection

2. Over current protection

3. Overvoltage protection

4. Reverse polarity protection

5. Overheating protection

When the internal temperature is more than 85 ℃, it will stop automatically; When the temperature is lower than 75 ℃, it will open automatically.

Operating conditions:

Ambient temperature: - 5-40 ℃

Relative humidity: 5-95%

Maximum altitude: 10000m

How to use it:

1. When charging, first connect the connector to the battery, and then to the AC; after fully charged, cut off the AC, and then unplug the battery. If the battery plug is first unplugged during charging, especially when the charging current is high (red light), it is easy to damage the charger.
2. When the LED indicator turns green, please continue charging for 2-3 hours.
3. Please try not to charge the charger after the battery is exhausted. Otherwise, the battery will not be protected or even damaged.
4. Please use the charger in a dry place in time.
5. When not using the charger, do not always connect to the power source.
