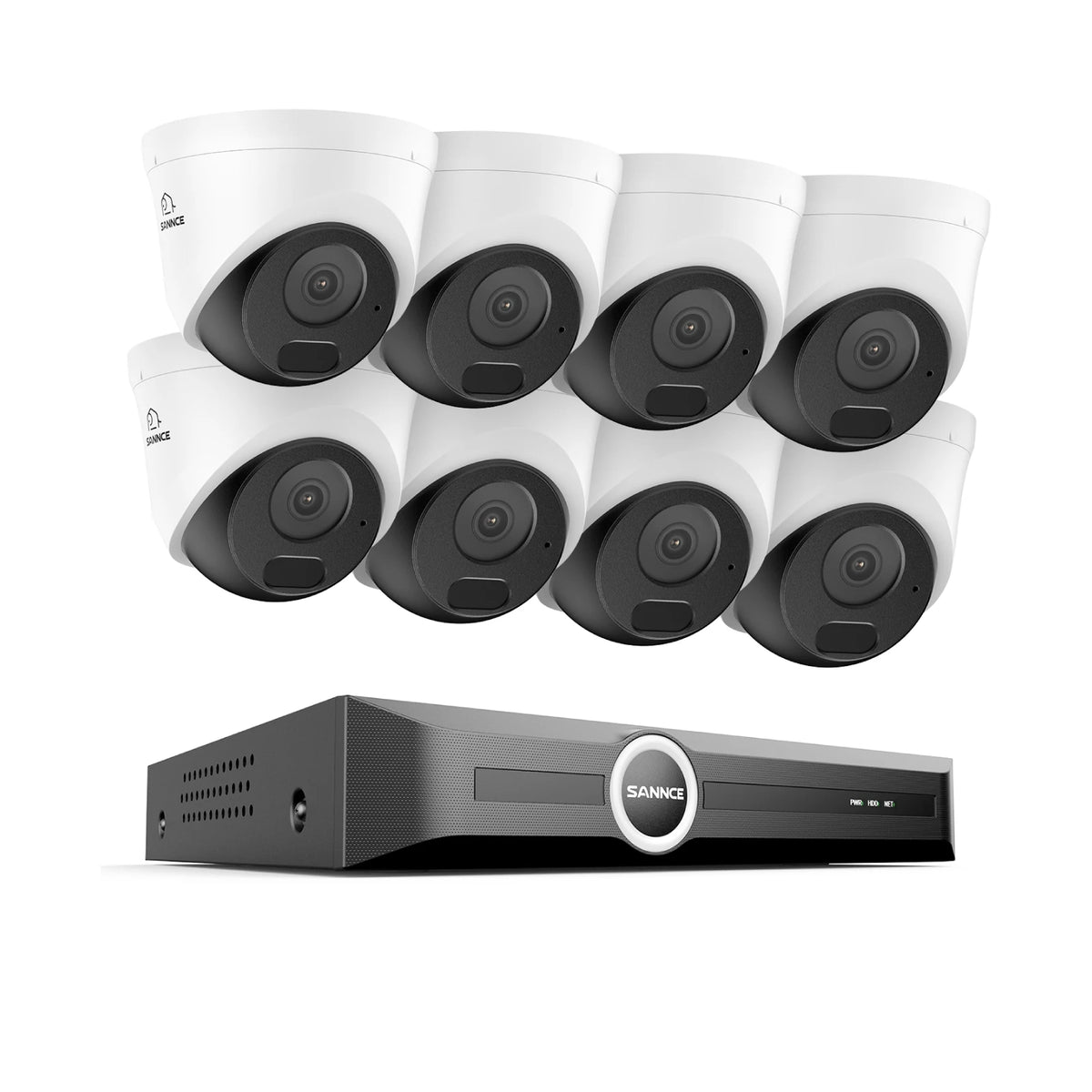

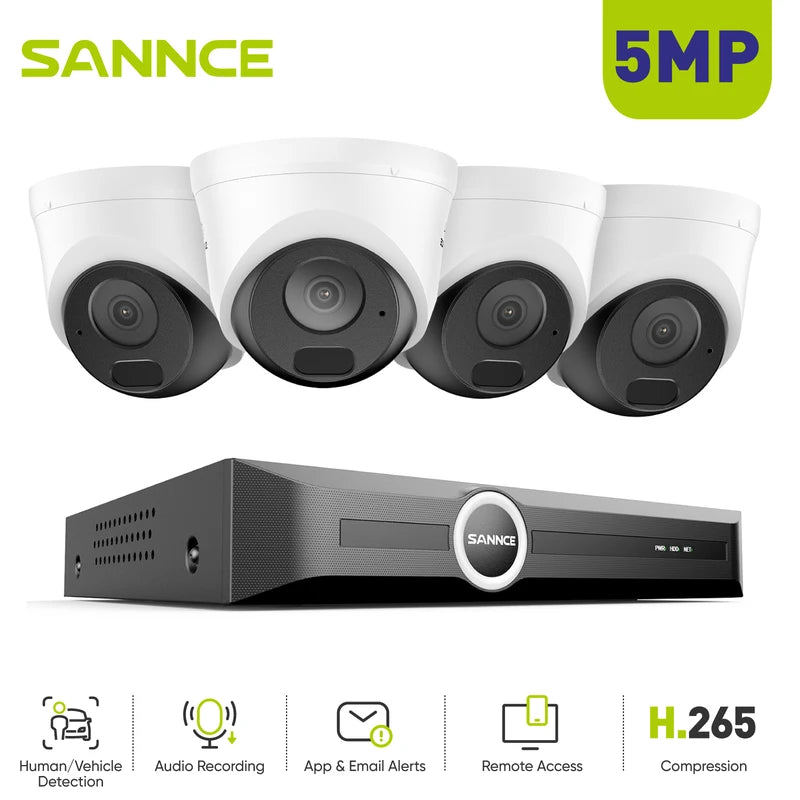

8-Channel PoE Security DVR with 5MP IP Camera Support Night Vision

NVR

Video & Audio

Decoding Format

S+265; H.265; S+264; H.264

IP Video Input

8CH PoE

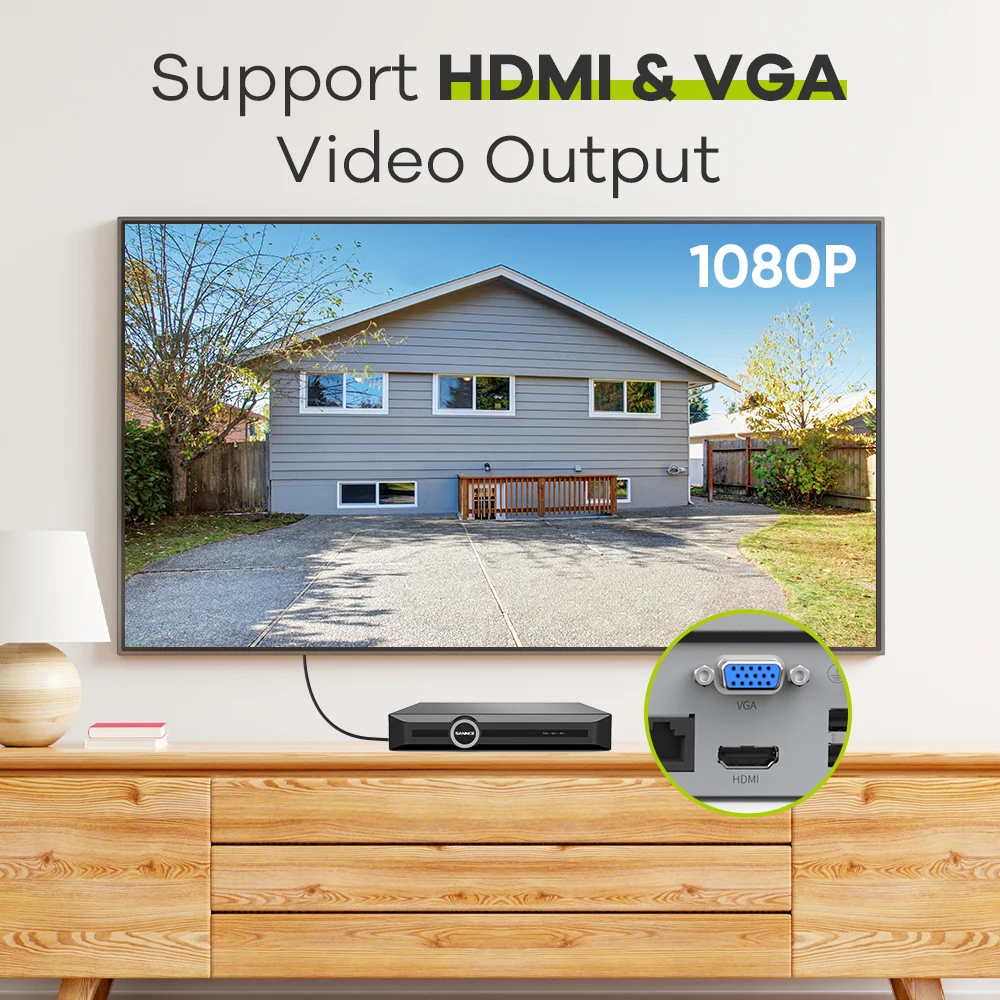

Video Output

HDMI: 1024×768(60Hz), (720P )1280×720(50Hz/60Hz), 1280×800(60Hz), 1440×900(60Hz),
(1080P)1920×1080(50Hz/60Hz),independent output

VGA: 1024×768(60Hz), (720P )1280×720(50Hz/60Hz), 1280×800(60Hz), 1440×900(60Hz),
(1080P)1920×1080(50Hz/60Hz)

Audio

G711A; G711U; ADPCM_DIV4

Incoming/outgoing Bandwidth

60/40 Mbps

Max Recording Resolution

Up to 6MP@30fps(Frame rate depends on IP camera)：
6MP(30fps)×1, 5MP(30fps)×1, 4MP(30fps)×2, 3MP(30fps)×2, 1080P(30fps)×4, 720P(30fps)×8,
4CIF(30fps)×8

Max Playback Resolution

Up to 6MP@30fps(Frame rate depends on IP camera)：
6MP(30fps)×1, 5MP(30fps)×1, 4MP(30fps)×1, 3MP(30fps)×2, 1080P(30fps)×3, 720P(30fps)×4

Record Playback

Multi-channel Playback

4

Record Mode

Alarm Recording; Schedule Recording

Storage Method

Local HDD

Backup

USB storage device

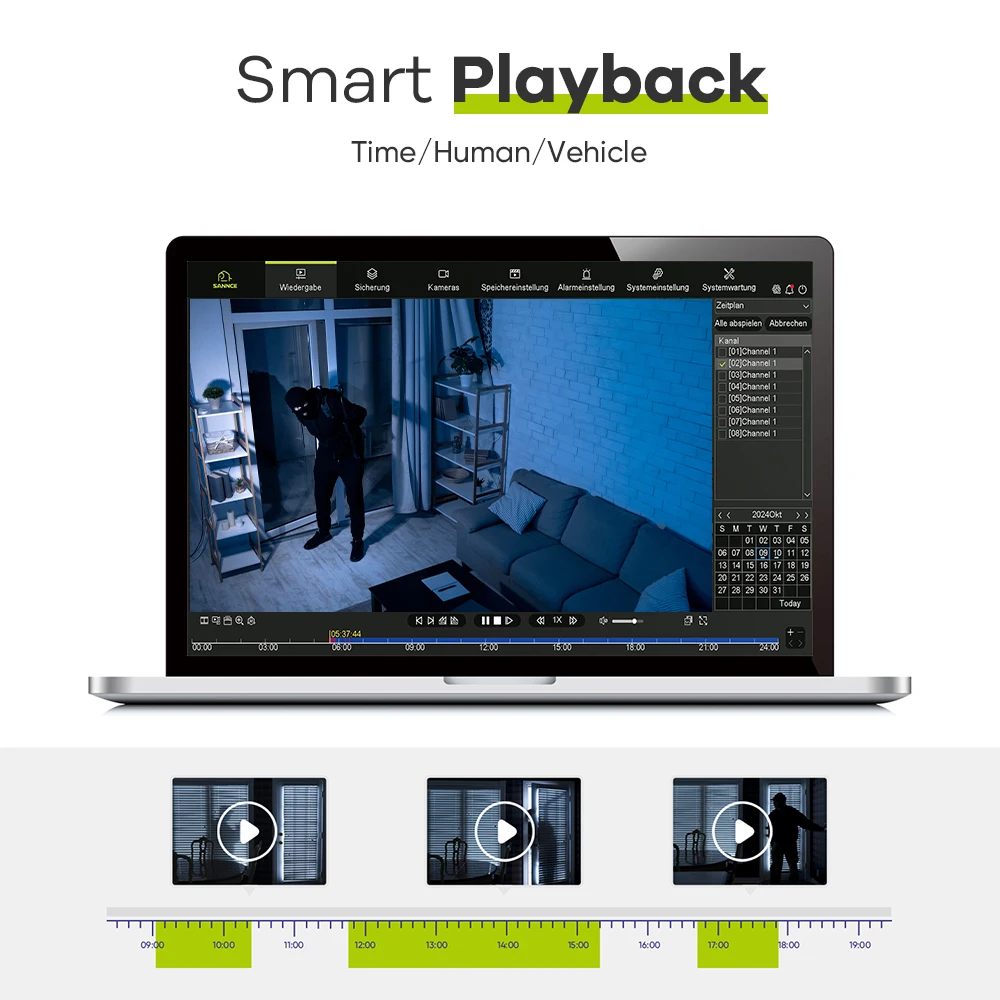

Playback Function

Play/Pause/Stop/Slow/Speed/Backwards 30s/Forwards 30s/Full Screen/Backup (Video Editing)/Digital
Zoom

Alarm

General Alarm

Motion Detection; Mask Alarm; Alarm Input(IPC)

Exceptions Alarm

Video Loss; IP Conflict; MAC Conflict; Network Disconnected; No Disk; Illegal Access; Disk Full; Disk R/W
Error; Recording Abnormal; Abnormal found in smart of disk; Abnormal temperature of the disk; PoE
Overload; Voltage Alarm(IPC); RTC Failure

Storage

HDD

1 SATA Interface

HDD Capacity

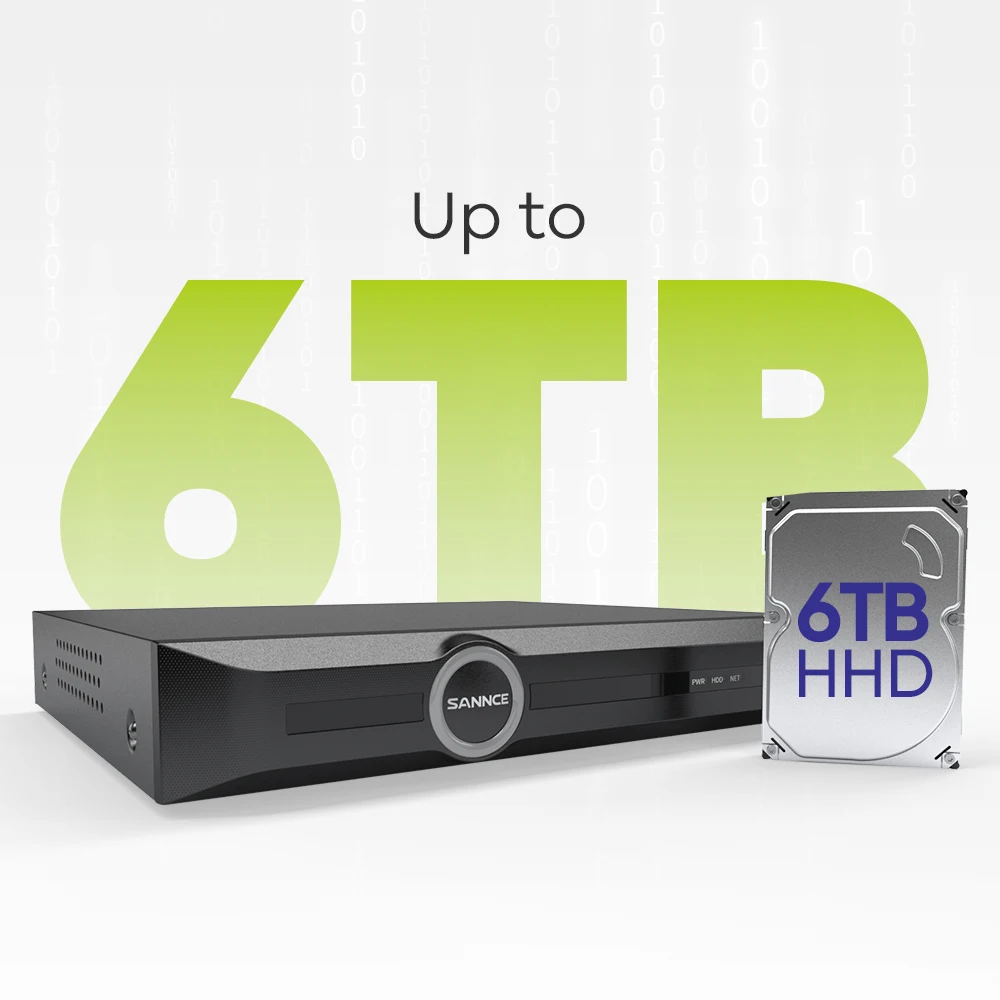

Up to 6 TB capacity for each HDD

Network

Network Protoco

ARP; DDNS; DHCP; DNS; Easy DDNS; HTTP; ICMP; IGMP; IPv4; IPv6; NTP; RTCP; RTP; RTSP; SSH; TCP/IP;
UDP; Unicast; UPnP

Mobile Phone Access

Android; iOS; P2P

System Compatibility

CGI; SDK

Web

IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+

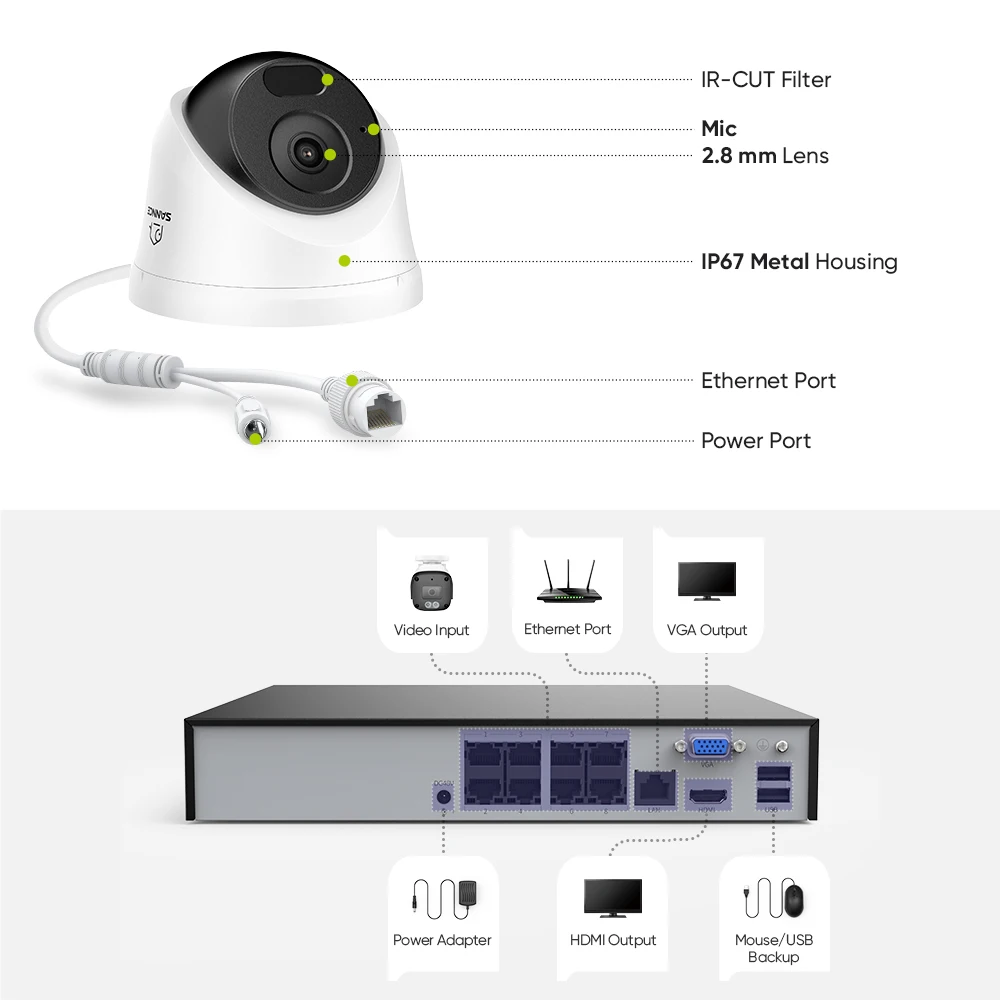

External Port

USB

2×USB2.0

HDMI

1×HDMI

VGA

1×VGA

Network Interface

1×RJ-45, 10/100 Mbps self-adaptive Ethernet port

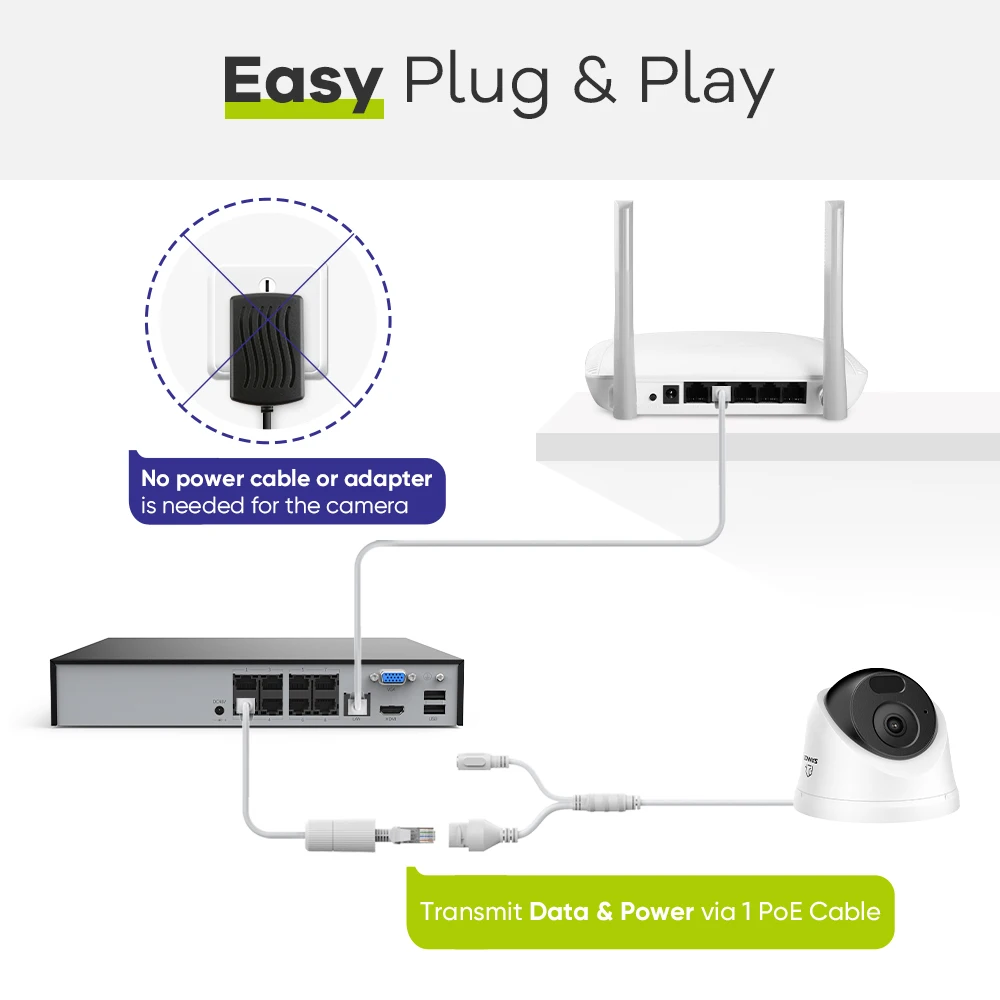

PoE

PoE Interface

8×RJ45, 10/100 Mbps self-adaptive Ethernet port

PoE Budget

45W

Power per PoE Port

30W

Standard

IEEE 802.3 af/at

General

UI Language

English;German; French;Italian;Spanish

Operating Power

DC48V 1.35A

Power Consumption

<10W(without HDD&without PoE)

Working Temperature

10 °C to 55 °C (14 °F to 131 °F)

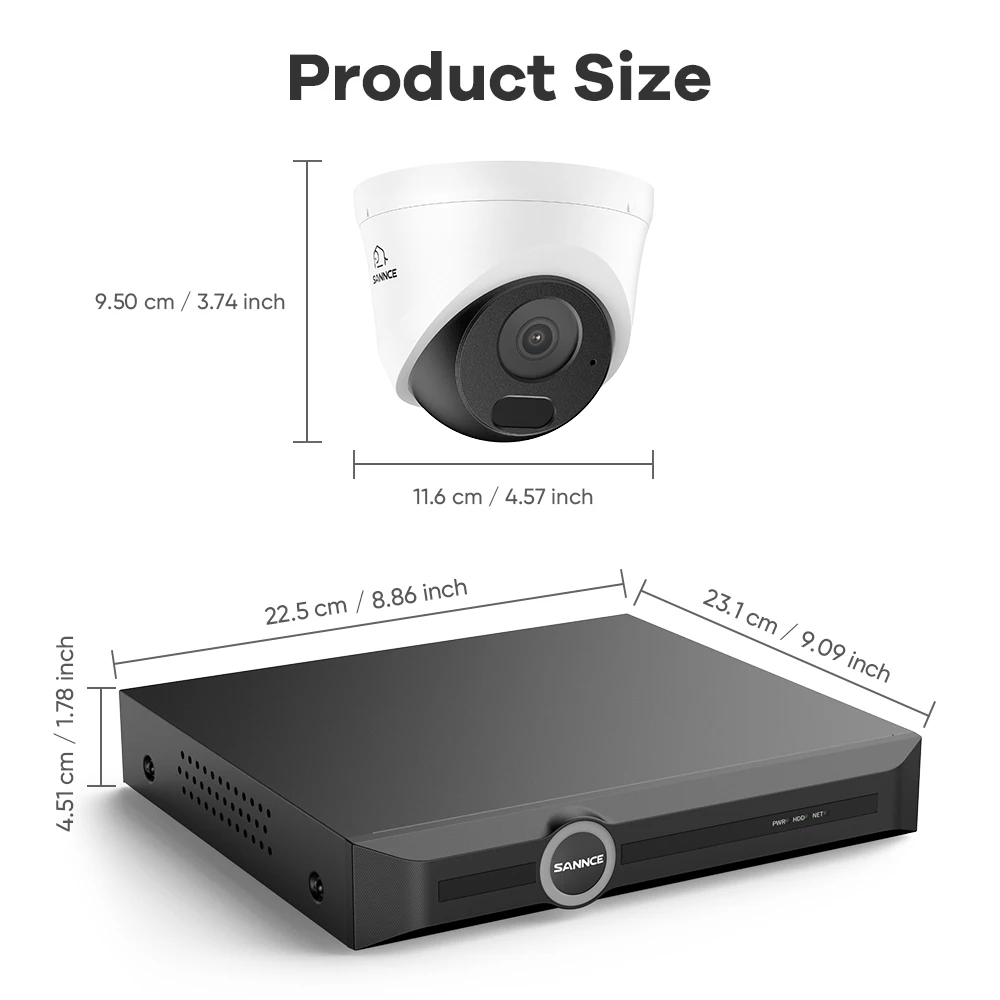

Dimensions (W X H X D)

225 mm × 231 mm × 45.1 mm

IP Camera

Camera

Image Sensor

1/3" Progressive Scan CMOS

Main Stream

50 Hz: 20fps 2880x1620)，25fps(2560x1440,2304x1296,1920x1080,1280x720)
60 Hz: 20fps 2880x1620)，30fps(2560x1440,2304x1296,1920x1080,1280x720)

Sub-stream

50 Hz: 25fps(704x576,704x288,640x360,352x288)
60 Hz: 30fps(704x576,704x288,640x360,352x288)

Wide Dynamic Range

DWDR

Electron Shutter

1s～1/100000s

Image Processing

Support electronic zoom, horizontal flip, vertical flip, video flip, strong light suppression, backlight compensation, fog penetration, day/night mode switching, color to black conversion, white balance, wide dynamic range, electronic fog penetration, 3D digital noise reduction, Smart IR.

Min. Illumination

Color 0.03 lux (@F2.0,AGC ON)；B/W: 0 lux with IR on

Color to B/W Conversion

Support internal synchronization, black and white, color, and timing settings.

Video Parameters

The image brightness, contrast, saturation, chroma and sharpness are adjustable

Video Blocking

4 pieces

Lens

focal length

2.8mm Fixed Focal Length Lens

Angle of View

Horizontal FOV 95.3°, vertical FOV 54.1°, diagonal FOV 107.3°

Aperture

F2.0

Lens Mount Types

M12

Interface Performance

Network Port

1 RJ45 10 M/100 M self-adaptive Ethernet port

Audio Port

Built-in MIC (Pickup Distance of 5m)

Extended Protocol

Onvif Profile S/T、CGI

Coding Mode

Video Compression

S+265/H.265/H.264B/H.264M/H.264H

Video Bitrate

32Kbps~6Mbps

Main Stream Default Bitrate

4Mbps

Audio Compression Algorithm

G.711A/G.711U/ADPCM_D

Audio Sampling Rate

8kHz/32kHz/48kHz

Light Function

Number of Infrared LEDs

2 pcs

Night Vision Distance

Up to 100 ft/30 m

Other Functions

IE Access

IE10+、Firefox 85.0.4183.121、Edge 114.0.1823.79、Safari 15.6.1、Chrome 114.0.2

IP Address

Support static and dynamic IP addresses, and custom network cards

Network Protocol

HTTP、TCP/IP、UDP、UPnP、ICMP、DHCP、DNS、DDNS、Easy DDNS、NTP、IPv4、SSH、Unicast、ARP、RTSP、FTP

System Time Clock

NTP Time Calibration, Time Zone Setting, Daylight Saving Time

Remote Administration

Network Remote Upgrade, Parameter Settings, and Configuration Import and Export

Smart Analysis

human & Vehicle Detection

General Functions

Support snapshot, one-key recovery, password protection, IP blacklist and whitelist filtering, IP auto-adaptation, and heartbeat.

General

Housing

Metal & Plastic

Color

White & Black

Operating Power

PoE (802.3af), Max.6W

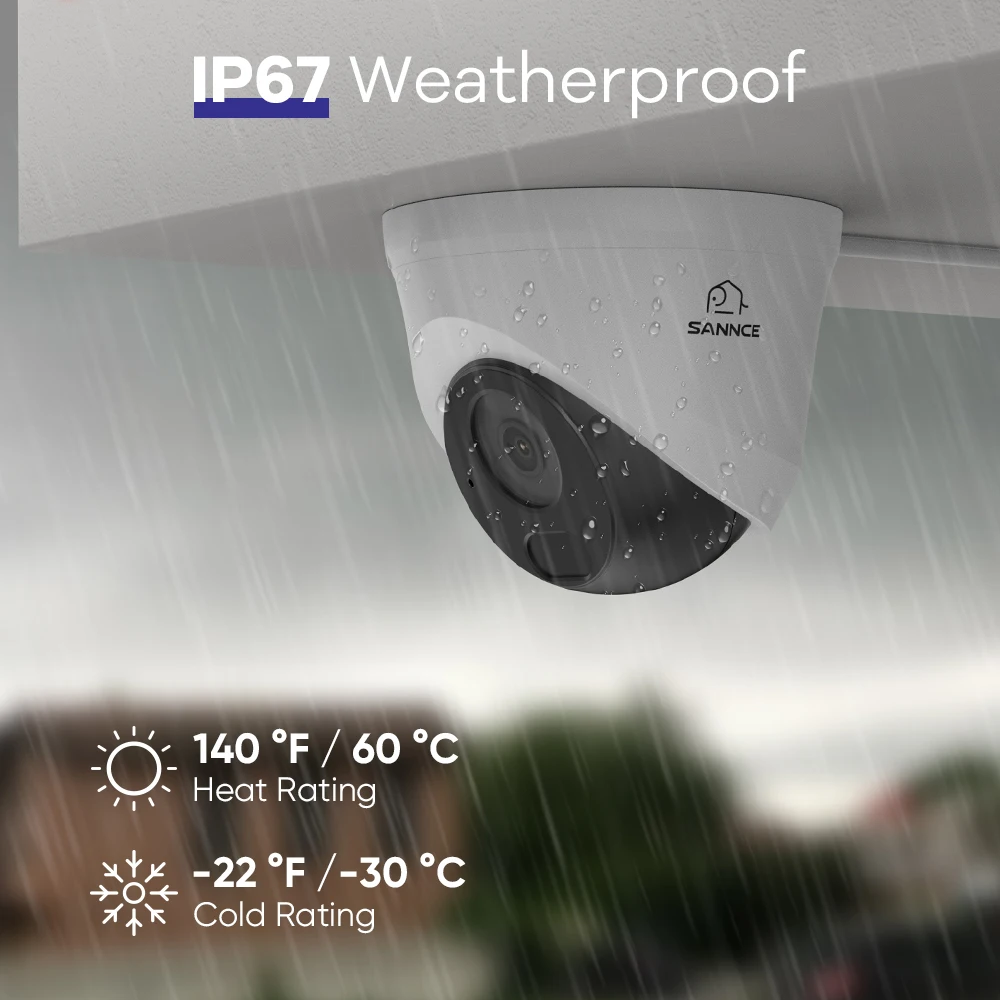

Operating Temperature

-22 °F – 140 °F/-30 °C – 60 °C

Indoor/Outdoor Use

Indoor/Outdoor

Interface Protection

IP67, Level 4 Lightning Protection, Surge Protection up to 2KV.

Dimension (L X W X H)

4.56" X4.56" X 3.7"/ 116 X 116 X 95mm

Weight

0.62 lb./283g
