Name: ESP32S3 Development Board with WiFi and BLE 5.0 - Dual-Core 240MHz, Compact
Brand: Seeedstudio Local Supply Store
SKU: 12000052932593678
Price: 45.99 USD
Availability: InStock

ESP32S3 Development Board with WiFi and BLE 5.0 - Dual-Core 240MHz, Compact

$45.99 $86.99

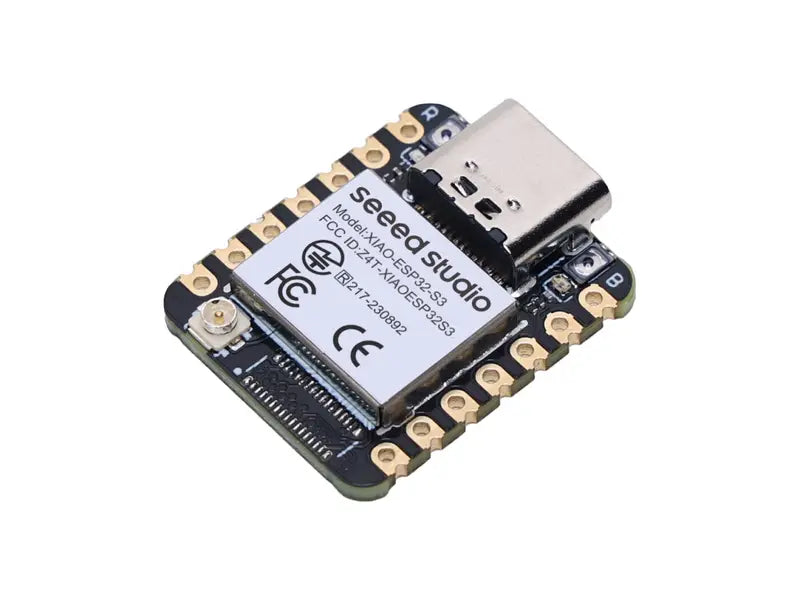

Seeed Studio XIAO ESP32S3 leverages 240MHz Xtensa 32-bit LX7 dual-core processor, supporting both WiFi and BLE 5.0 wireless connectivities, a 2.4GHz Rod antenna, allows for deep sleep mode with power consumption as low as 14μA while supporting lithium battery charging management. Ideal for the Internet of Things, Smart Homes, Wireless wearable devices, Robotics, etc.

Feature

Powerful MCU Board: Incorporate the ESP32S3 32-bit, dual-core, Xtensa processor running at up to 240MHz, mounted multiple development ports, Arduino / MicroPython supported

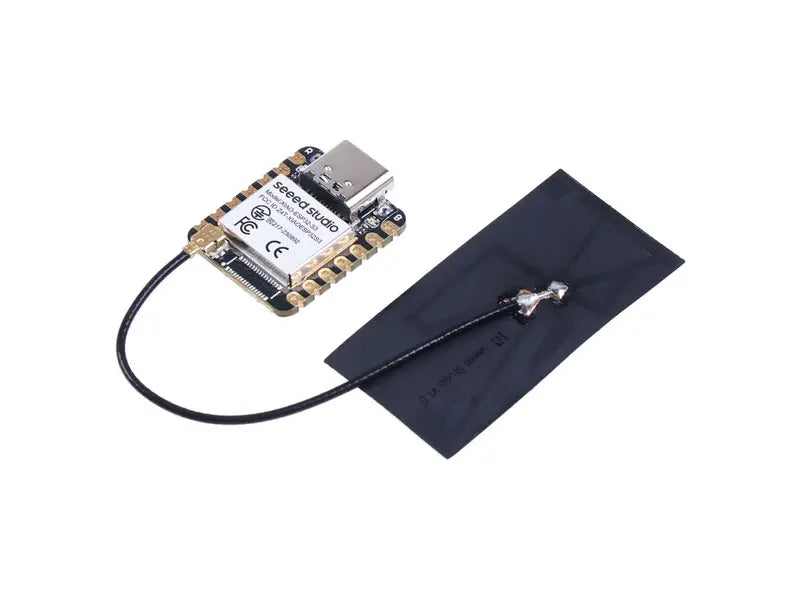

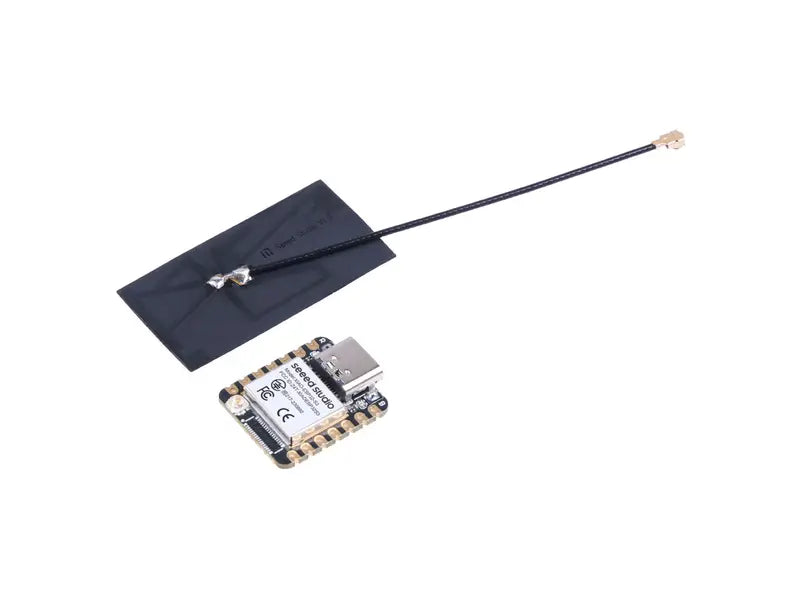

Outstanding RF performance: Supports 2.4GHz WiFi and BLE 5.0 dual wireless communication, support 100m+ remote communication when connected with U.FL antenna
Elaborate Power Design: Lithium battery charge management capability, offer 4 power consumption model which allows for deep sleep mode with power consumption as low as 14μA

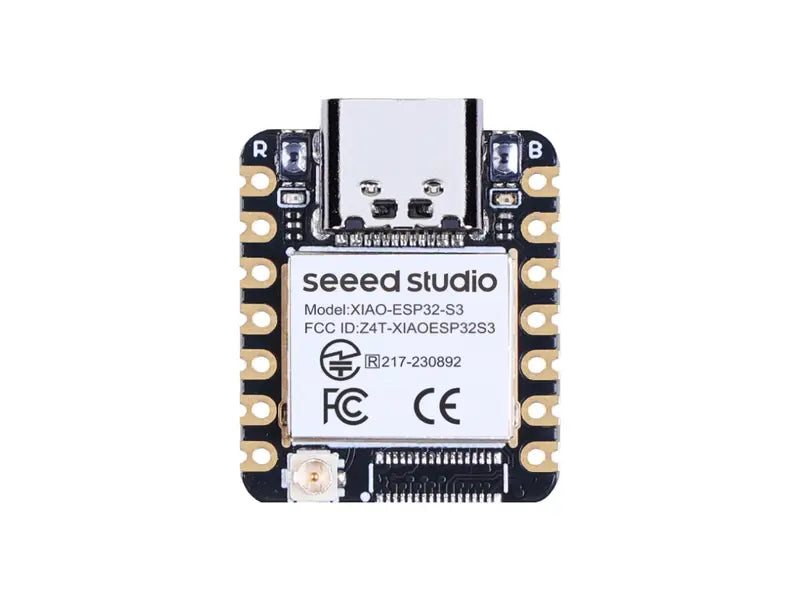

Thumb-sized Compact Design: 21 x 17.8mm, adopting the classic form factor of XIAO, suitable for space limited projects like wearable devices
Perfect for Production: Breadboard-friendly & SMD design, no components on the back

Specification

Parameter	Seeed Studio XIAO ESP32S3
Processor	ESP32-S3R8
Processor	Xtensa LX7 dual-core, 32-bit processor running up to 240 MHz
Wireless	Complete 2.4GHz WiFi subsystem
Wireless	BLE: Bluetooth 5.0, Bluetooth mesh
On-chip Memory	8M PSRAM & 8MB Flash
Interface	1x UART, 1x IIC, 1x IIS, 1x SPI,11x GPIO(PWM), 9x ADC, 1x User LED, 1x Charge LED
	1x Reset button, 1x Boot button

Dimensions	21 x 17.8mm
Power	Input voltage (Type-C): 5V Input voltage (BAT): 4.2V
	Circuit operating Voltage (ready to operate): - Type-C: 5V@19mA - BAT: 3.8V@22mA
	Charging battery current: 100mA
Low Power Consumption Model (Supply Power: 3.8V)	Modem-sleep Model: ~ 25 mA Light-sleep Model: ~ 2mA Deep Sleep Model: ~ 14 μA
WiFi Enabled Power Consumption	Active Model: ~ 100 mA
BLE Enabled Power Consumption	Active Model: ~ 85 mA
Working Temperature	-40°C ~ 65°C
