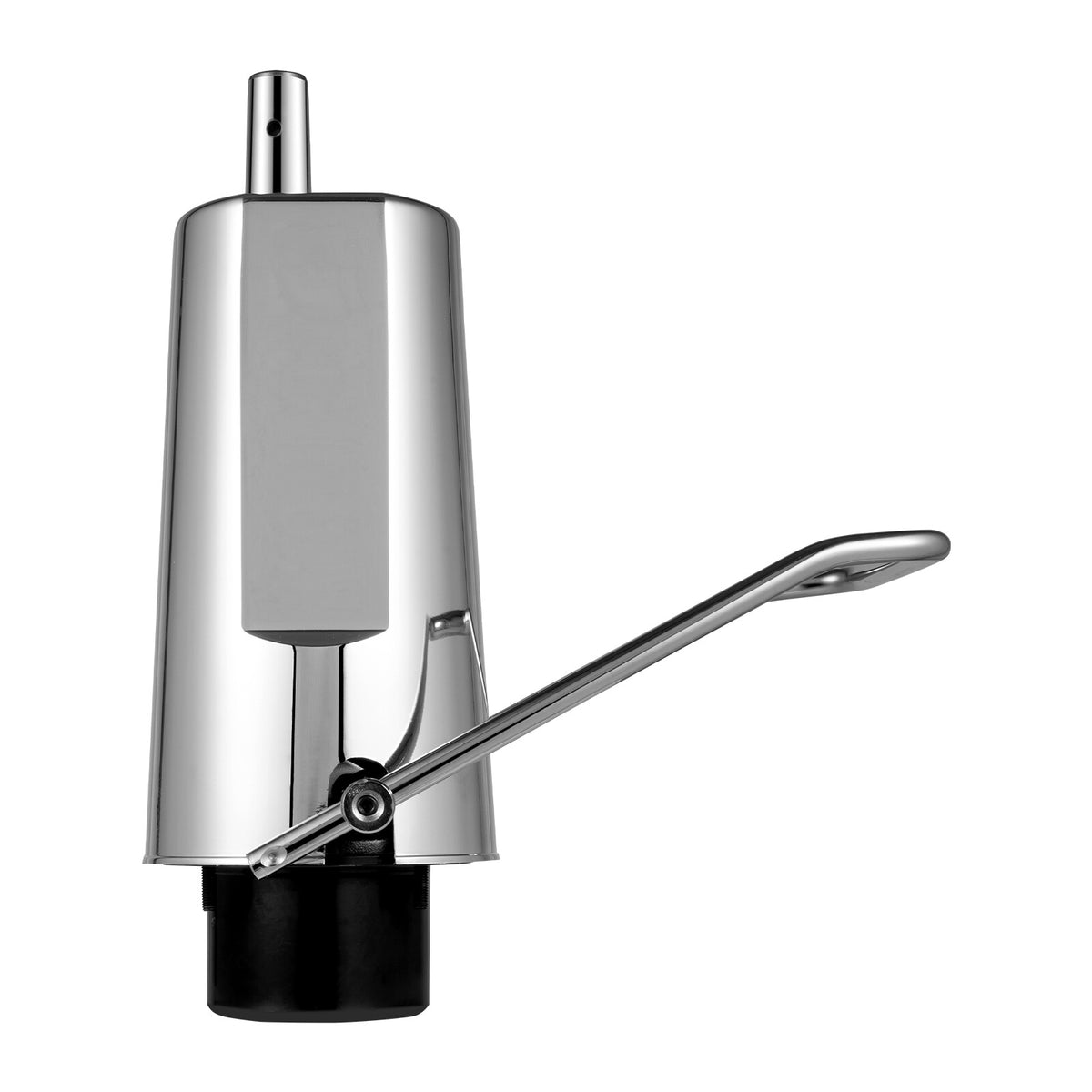

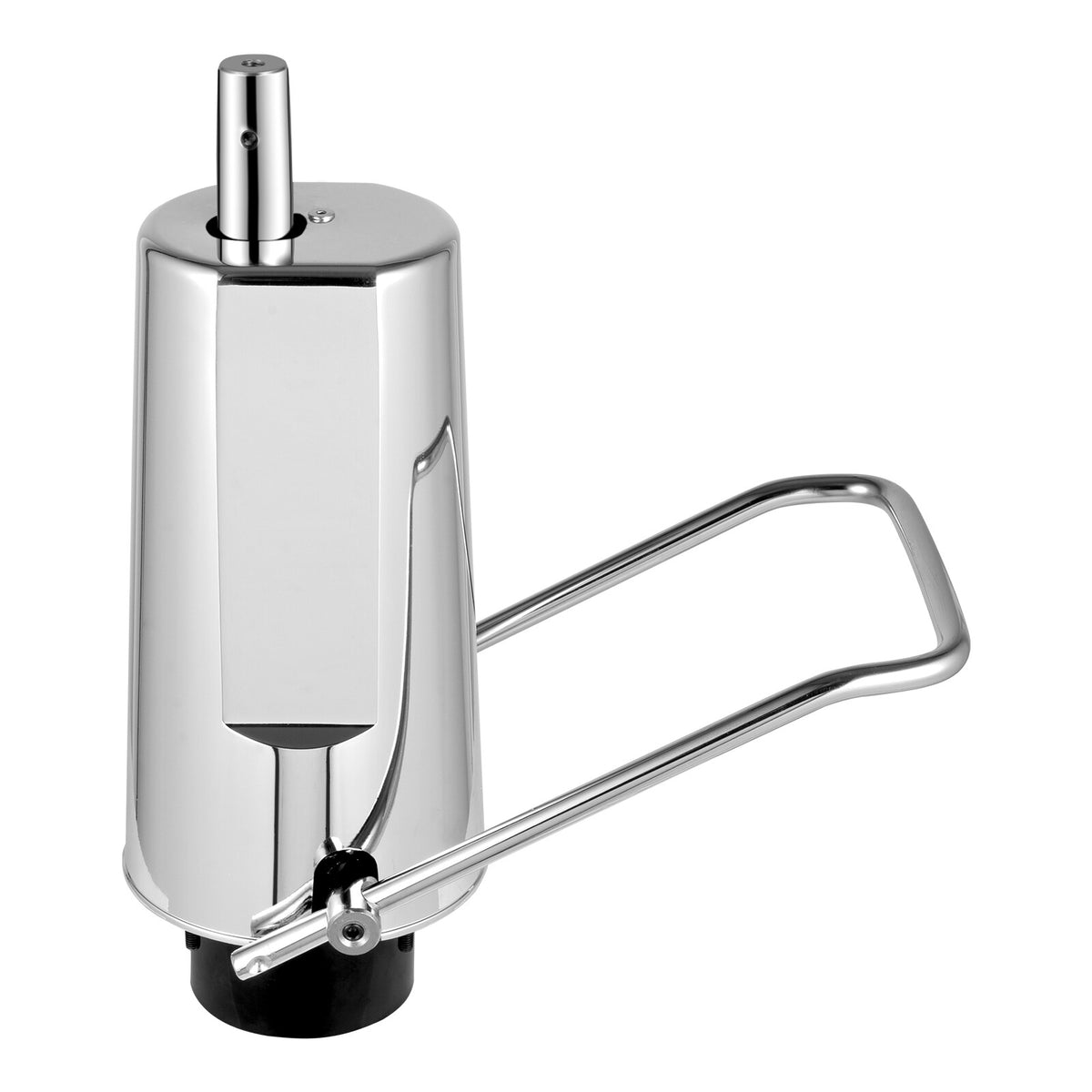

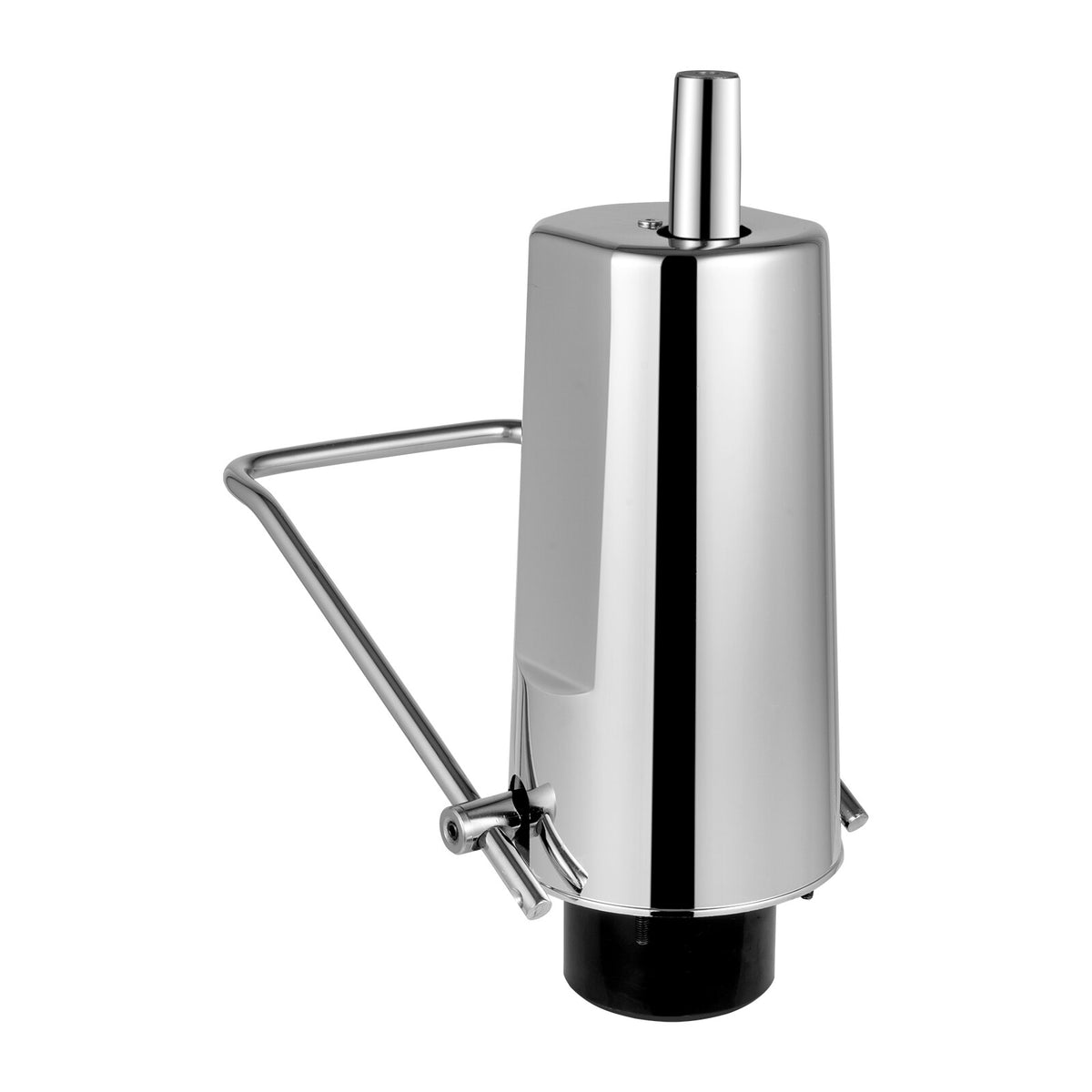

Hydraulic Pump for Salon & Barber Chair Replacement Lift Cylinder

How to confirm whether it matches your seat needs to pay attention to the following four aspects.

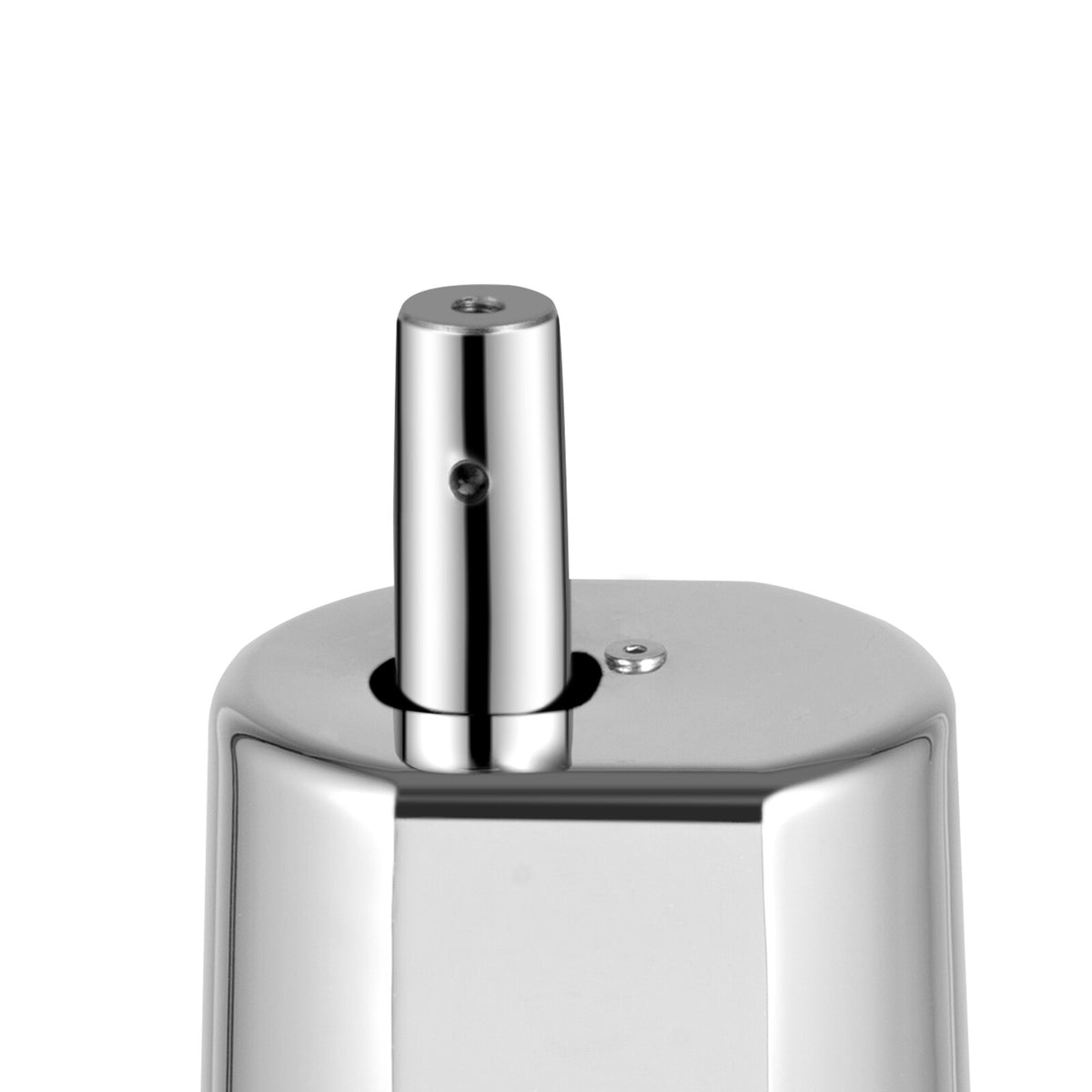

1、Upper interface requirements: Top thread of spindle: m8
2、Shaft Diameter: 26mm
3、Cone Ratio of shaft: 1:13
4、Requirements for base connection: 4 holes and the diagonal spacing of holes is 115mm. And please bring four m8 nuts

Description

A suitable chair is crucial when performing delicate tasks such as trimming hair for guests. If the height of the chair is not appropriate, you are likely to miscalculate the angle and length of the trim. This chair hydraulic pump has a 4.3-inch itinerary that can adapt well to guests of different heights and can be adjusted with just a light tap. It is an indispensable companion in a hair salon, helping you transform a fixed-height chair into a more adaptable lift chair!

Key Features

Creating Ideal Chairs: With its assistance, you can easily adjust the chair height to an ideal position, thereby better assisting your work and your guests.

Adjustable Height: This is a 4-bolt pump with a height adjustable range of 4.3 inches. You can install it on a chair and adjust it to the appropriate height as needed, which is very practical.

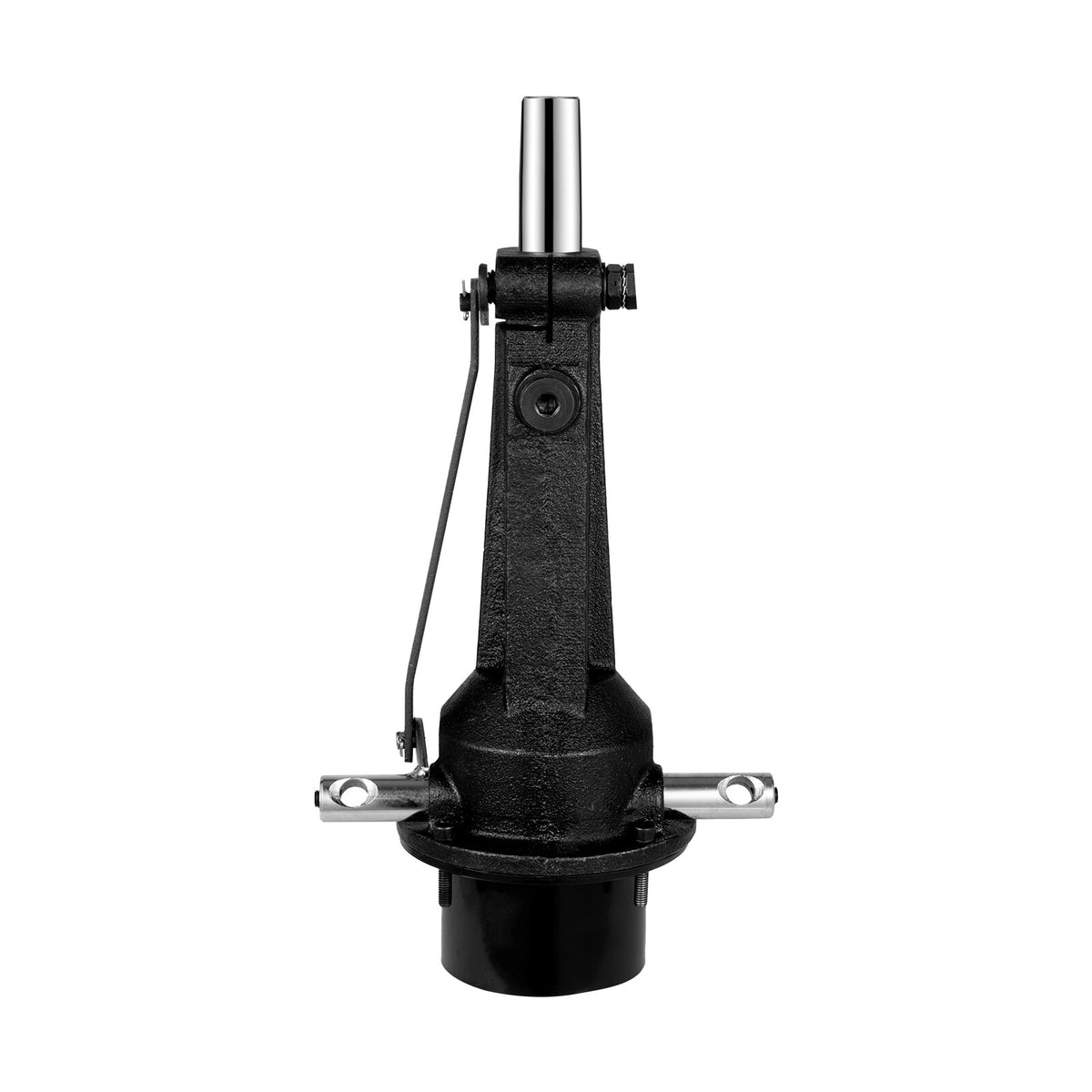

Selected Materials: The pump body is made of cast iron, combined with a spray-painted plastic casing, you don't have to worry about it deforming during use, resulting in a longer service life.

High Bearing: It can withstand a weight of 440 pounds, letting you rest assured to place a chair on it, and also make people sit at ease.

Ergonomic Design: Its design conforms to ergonomics, so you only need to step on the lever to raise or lower the chair without bending over.

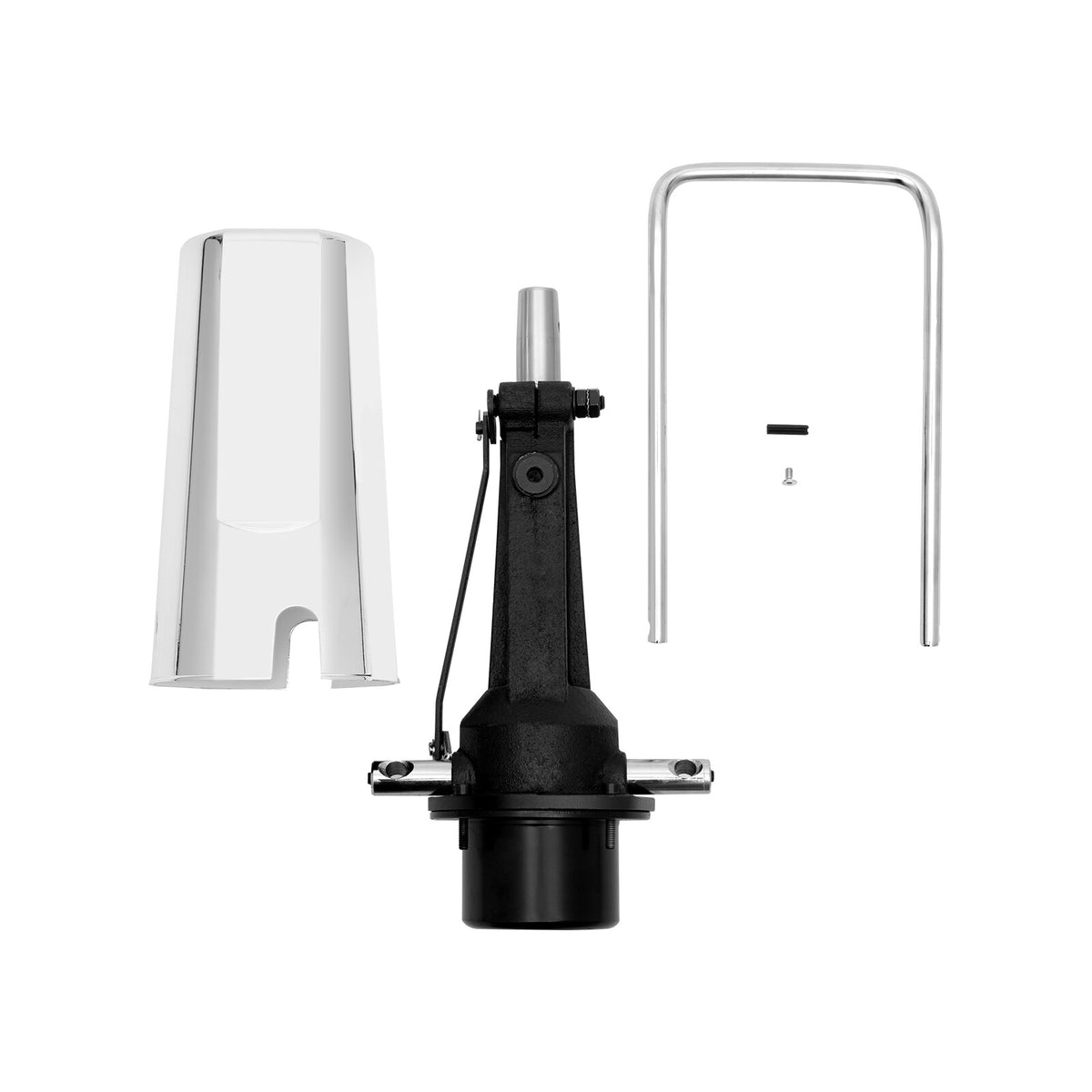

Easy to Install: You only need to install the lever and plastic cover, and then install the entire lifting pump on the chair you want to lift.

Simple Cleaning: Smooth surfaces are less prone to dust accumulation. Even if it gets dirty, you can effortlessly clean it.

Customer Service: We aim to provide high-quality products and services. If you have any questions, please feel free to contact us at any time. We will reply as soon as possible and solve the problem for you.

Details

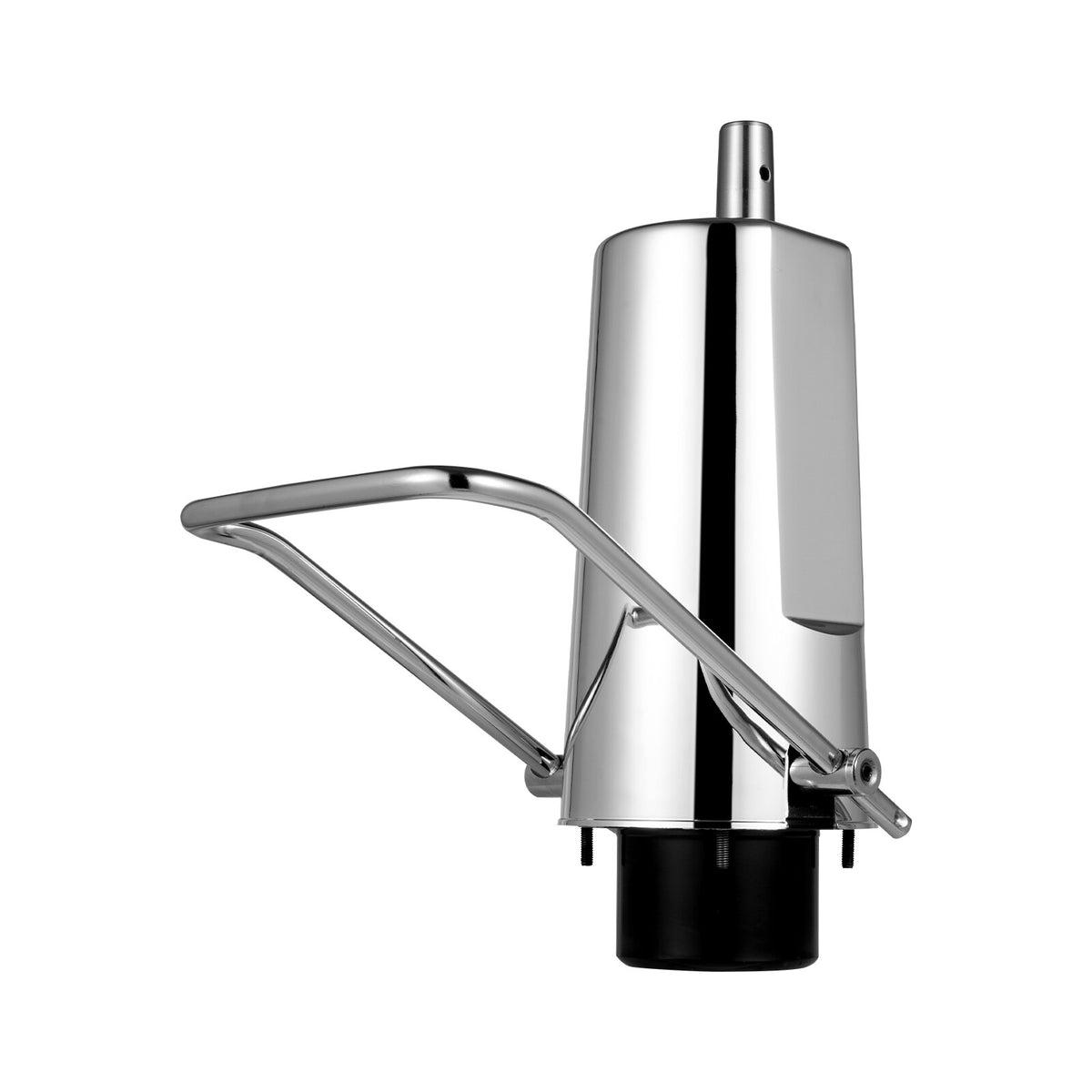

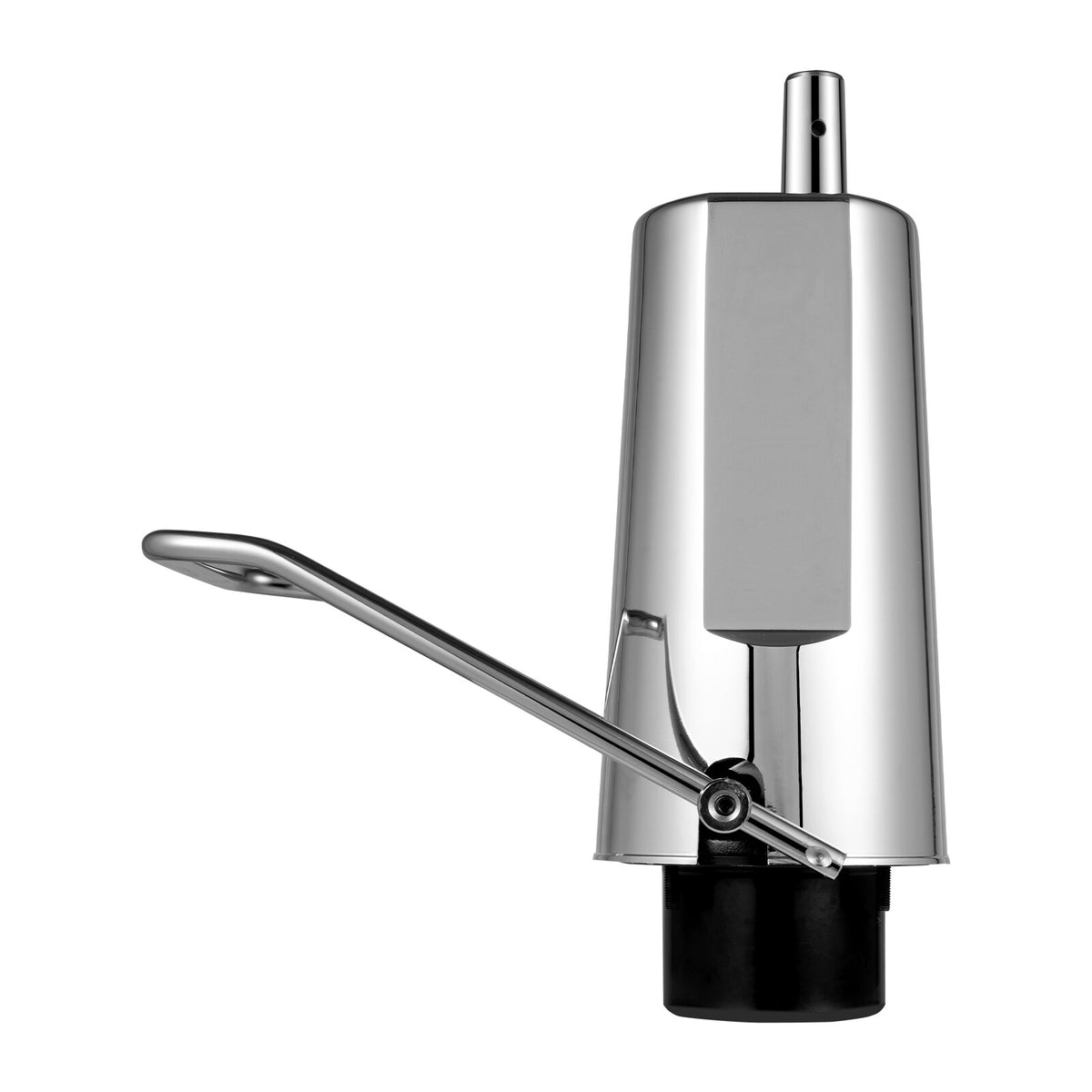

Curved Lever: The front end of the lever is curved, making it easier for your feet to step on while maintaining an appropriate angle.

Round Corners: It is designed with rounded corners all around, avoiding unnecessary scratches.

Application

This chair hydraulic pump is suitable as a replacement part for most standard-style chairs with four-hole and diagonal hole spacing of 4.53in bases in bars, beauty salon, hair salons, and other places.

Specifications

Model: YL700

Material: Cast Iron, Plastic

Color: Silvery

Style: Modern

Thread: M8

Surface Treatment: Painting

Assembly Required: Yes

Adjustable Range: 11cm/4.3in

Maximum Load Capacity: 200kg/440lbs

Suitable Base Diagonal Hole Spacing: 115mm/4.53in

Gross Weight: 8.05kg/17.74lbs

Net Weight: 7.15kg/15.76lbs

Shaft Diameter: 26mm/1in

Base Diameter: 89mm/3.5in

Base Height: 57mm/2.24in

Lever Length: 28.5cm/11.22in

Product Height: 37cm/14.56in

Package Size: 41.5*37*19.5cm/16.33*14.56*7.67in

Package Included

1*Chair Hydraulic Pump

All Accessories for Assembly

Notes

• Please note this package only contains the chair hydraulic pump, please prepare other components yourself.
• It is recommended to clean with a dry tissue. Please be careful not to use detergent to wipe the surface of the product to avoid damage.
• Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
• The product does not include chairs
