Solar PV Power Cable 10AWG 30M-100M Black or Red 6mm²

Solar Cable 10AWG 30M 50M 100M 6mm² PV Power Wire Black or Red

Beige / 6 AWG / 10m

Sale price $246.99 Regular price $456.99

Sale price $246.99 Regular price $456.99

Color Beige black Red

Specification 6 AWG 10 AWG 8 AWG 12 AWG 22 AWG

Length 50m 10m 100m 30M

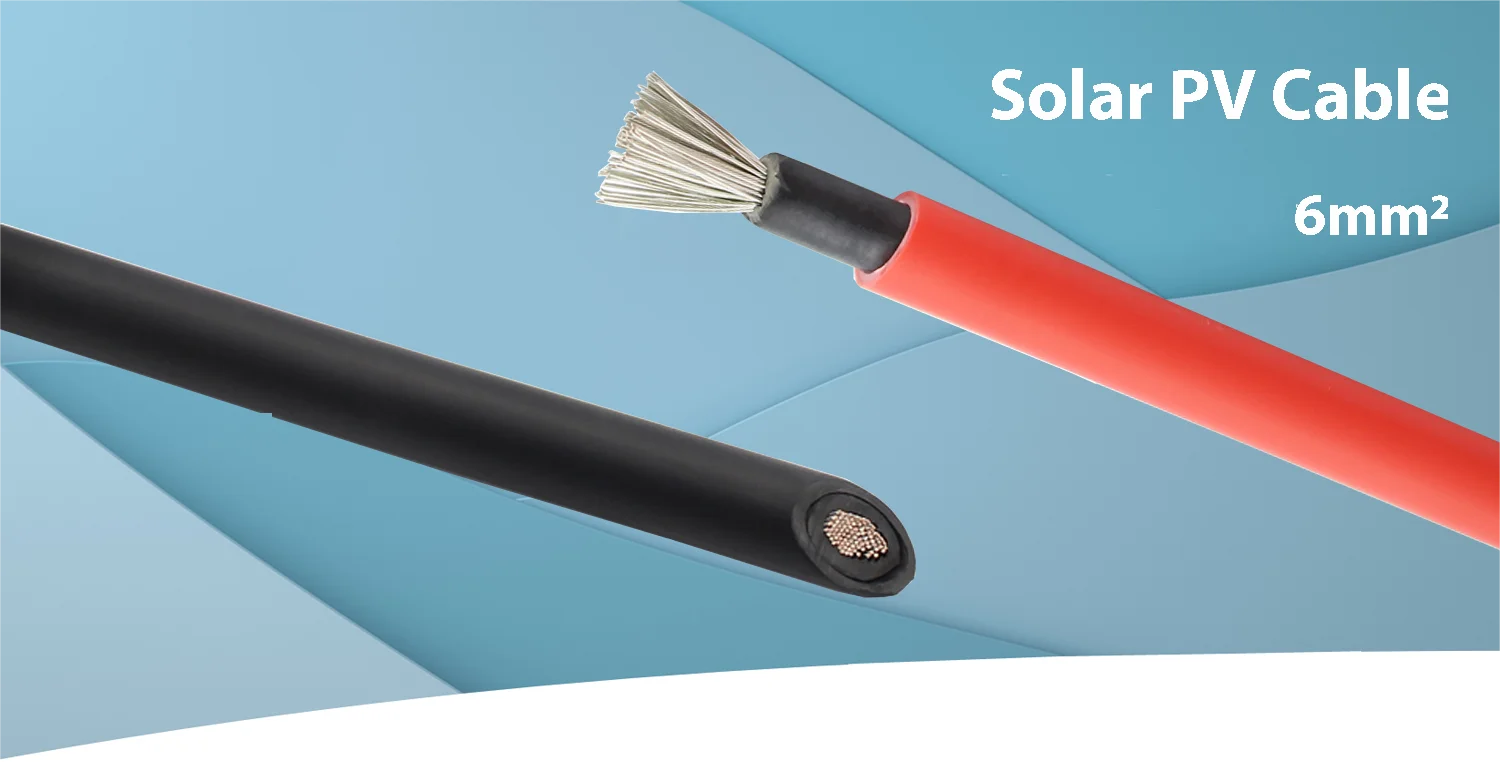

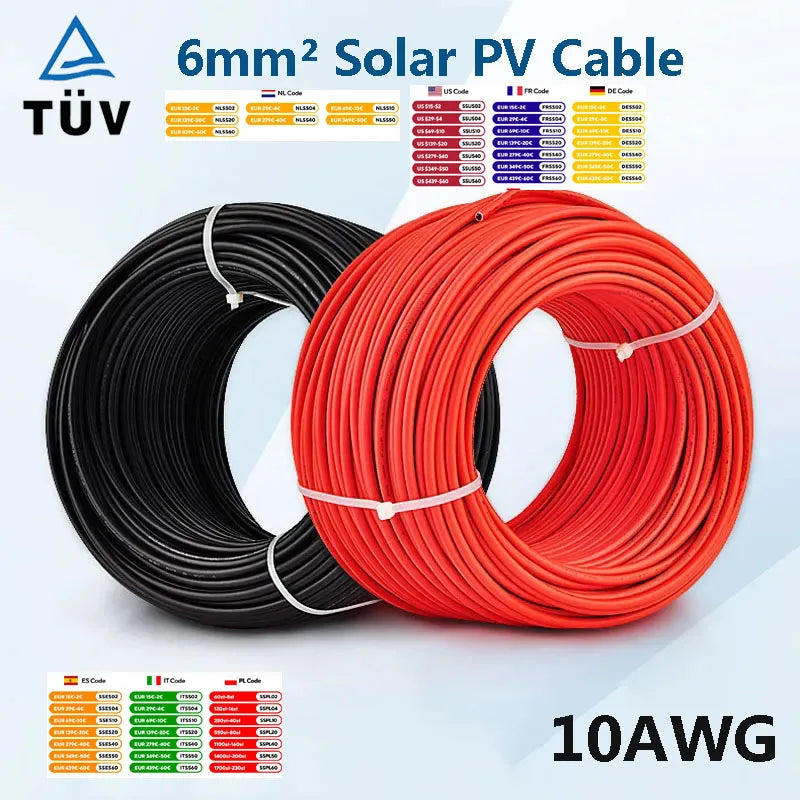

High Performance 6mm² Solar PV Cable 10AWG Solar PV Cable Red And Black

Application

Solar Cable used for interconnection wiring of grounded and ungrounded photovolatic power systems.

Cable design

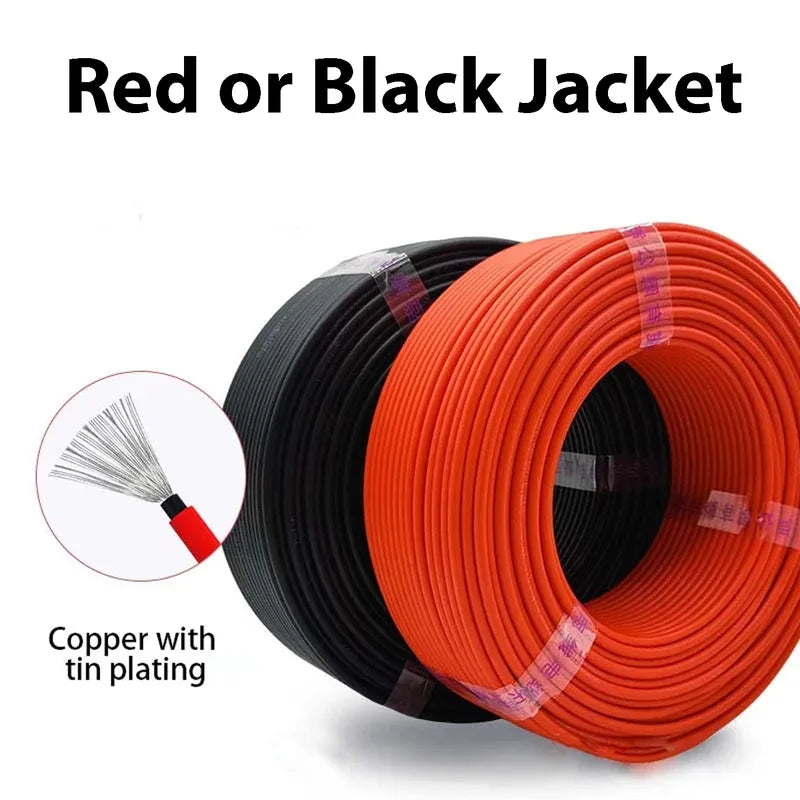

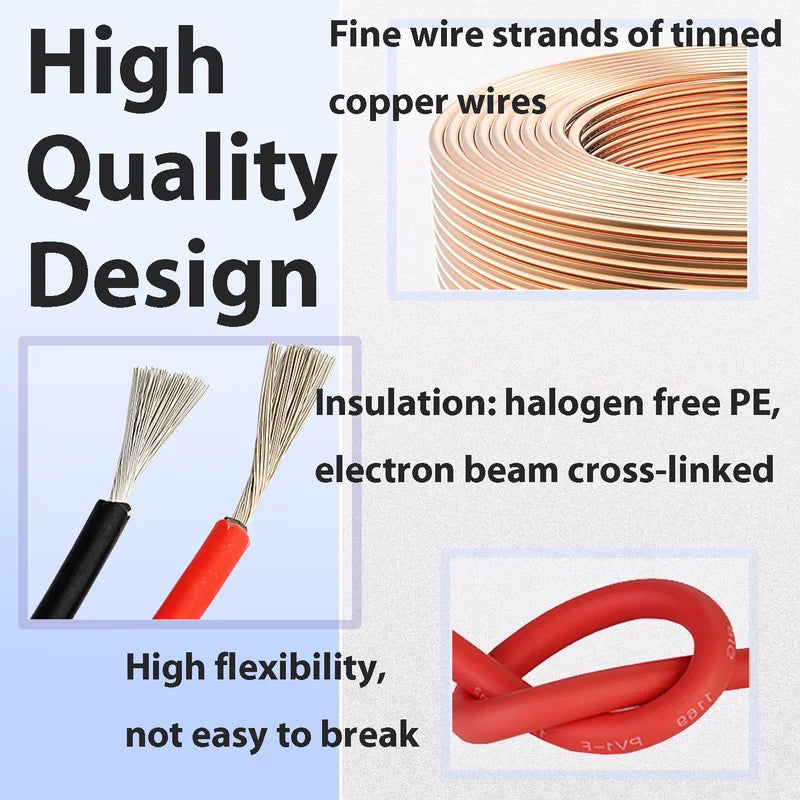

Conductor: fine wire strands of tinned copper wires, acccording IEC 60228, Class 5

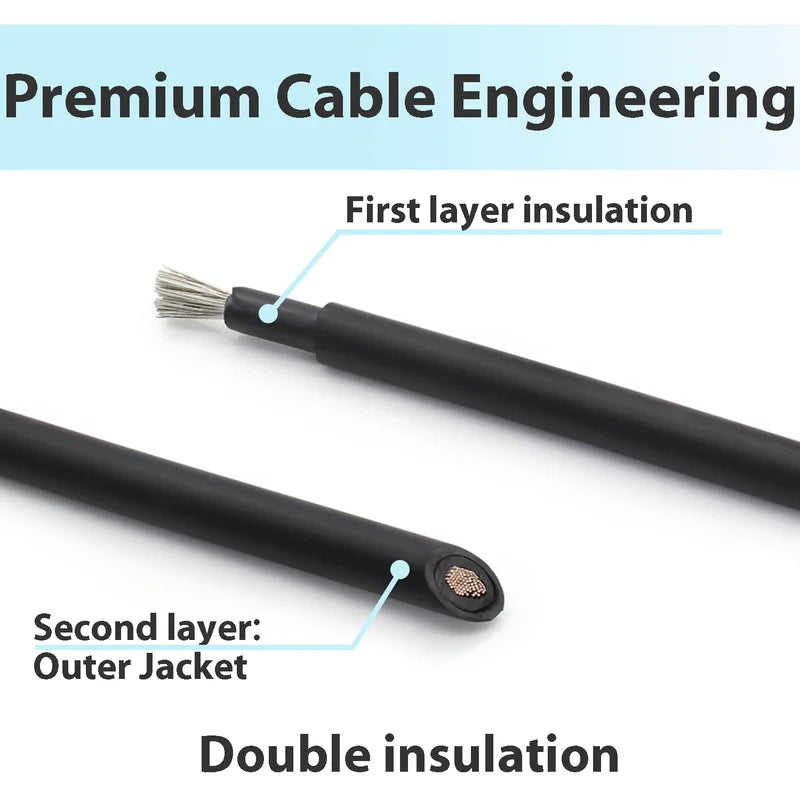

Insulation: halogen free PE, electron beam cross-linked. Color: Black

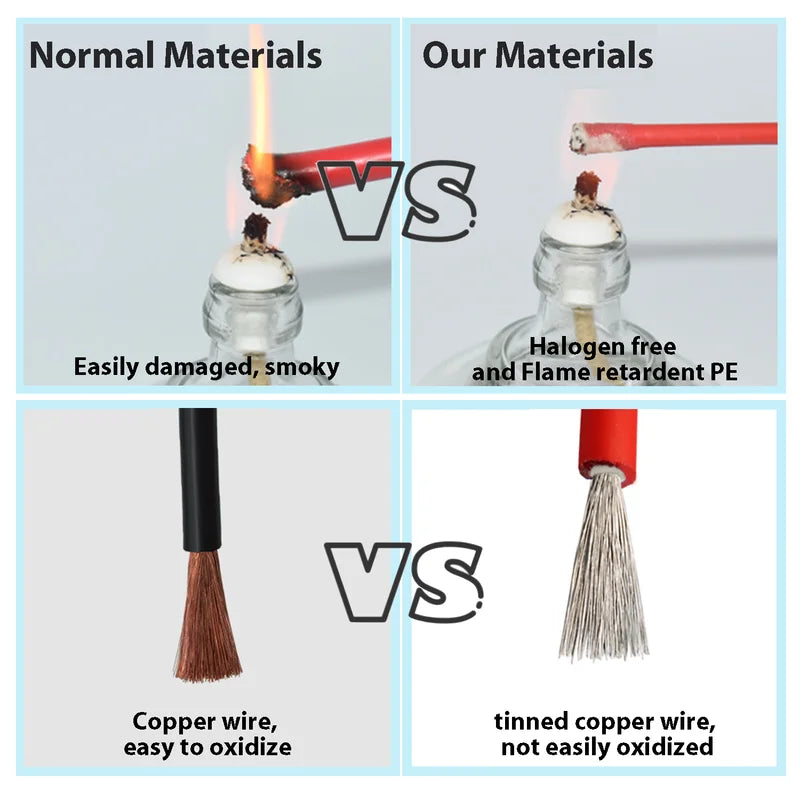

Outer jacket: halogen free and flame retardant PE, eletron beam cross-linked resistance against water, UV resistant. Jacket Color: Black or Red

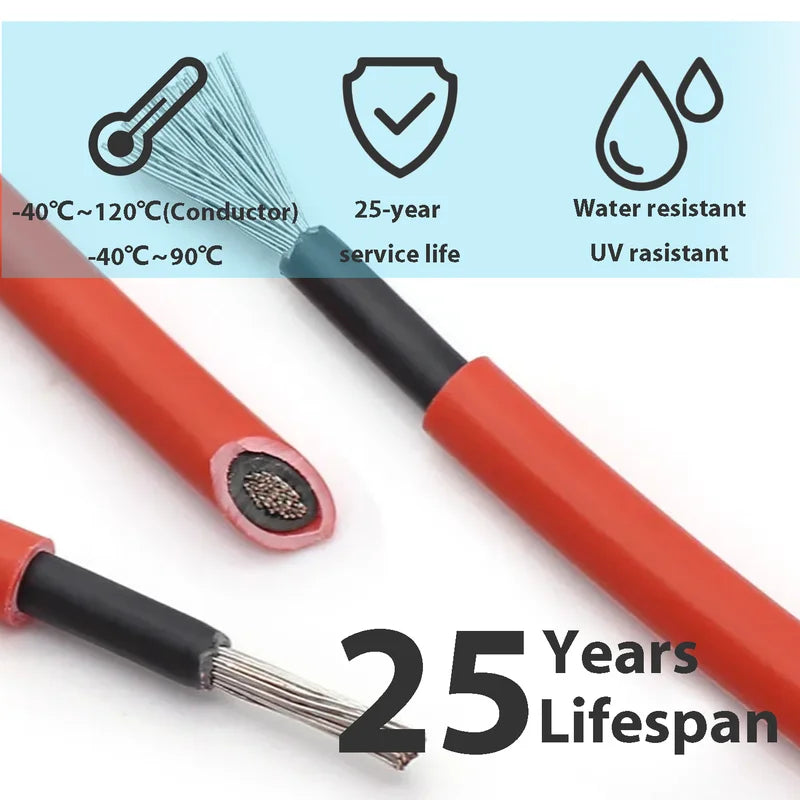

Temperature range

Max. temperature at conductor	-40℃~120℃
Temperature range	-40℃~90℃ (min. 25 years)

Electrical characteristics

Nominal voltageU0/U	AC 600/1000V, DC 900/1500V
Mat.DC voltage	1800V (conductor-conductor,non earthed system,circuit not under load)
AC-test-voltage	6.5KV
Min. Surface resistance of sheath	10^9Ω
Min.bending radius	5 x cable diameter
Other tests	accorfing EN 50395

Mechanical Characteristics

Min.bending radius	5X cable diameter
Tensile strength and elongation	according EN 60811-1-1
Cold Bending	according EN60811-1-4
Thermal endurance properties	according EN60216-2

Environmental characteristics

Product Description

Solar Cable 10AWG 30M 50M 100M 6mm² PV Power Wire Black or Red
